# Never Change an ATEX Radio Battery in the Zone. Here Is Why.
A worker's radio goes flat halfway through a shift.
He has a spare pack in his pocket. He is standing in the middle of the tank farm. He swaps it over, carries on, and thinks nothing of it.
He has just created an ignition source in a Zone 1 area.
## The battery is part of the certification
This is the point that does not land with most users.
When a radio is certified, it is not the radio body that gets certified. It is the **assembly** — radio, battery, antenna and approved accessories together.
The battery is an active part of the intrinsic safety design. It is the energy source the whole protection concept is built around. Its voltage, its internal resistance, its short-circuit current, and its fault behaviour are all in the certificate.
Change the battery, and you have changed a certified assembly.
## Why the act of swapping is dangerous
Disconnecting the battery breaks a live electrical connection.
Break a live connection and you can draw an arc. A small one, but intrinsic safety exists precisely because small ones are enough.
The contacts are also exposed during the swap. Drop the pack, brush the terminals against a steel handrail, and you have a short circuit outside the protected enclosure.
There is a second problem. Removing the battery opens the housing. Whatever ingress protection the radio had is gone for as long as it is open. Dust or vapour can enter parts of the assembly that were never meant to see the atmosphere.
The rule is simple and absolute. **Batteries and accessories are changed outside the hazardous area only.**
## Non-original batteries
The aftermarket sells cheap replacement packs for every popular radio.
For a standard commercial handheld, that is a commercial decision. For an ATEX radio, it is a compliance failure and a safety one.
A pattern battery has not been through the certification. Its fault behaviour is unknown. Fitting one means the radio's ATEX marking no longer describes the object in your worker's hand.
Manufacturers now design against this. The Hytera HP715Ex detects a non-original battery and responds with an on-screen prompt and a flashing red LED. Motorola built a wrong battery alert into the R7Ex.
That is a useful backstop. It is not a substitute for procurement discipline.
## The physical safeguards
Good ATEX radios are built so the battery cannot leave by accident.

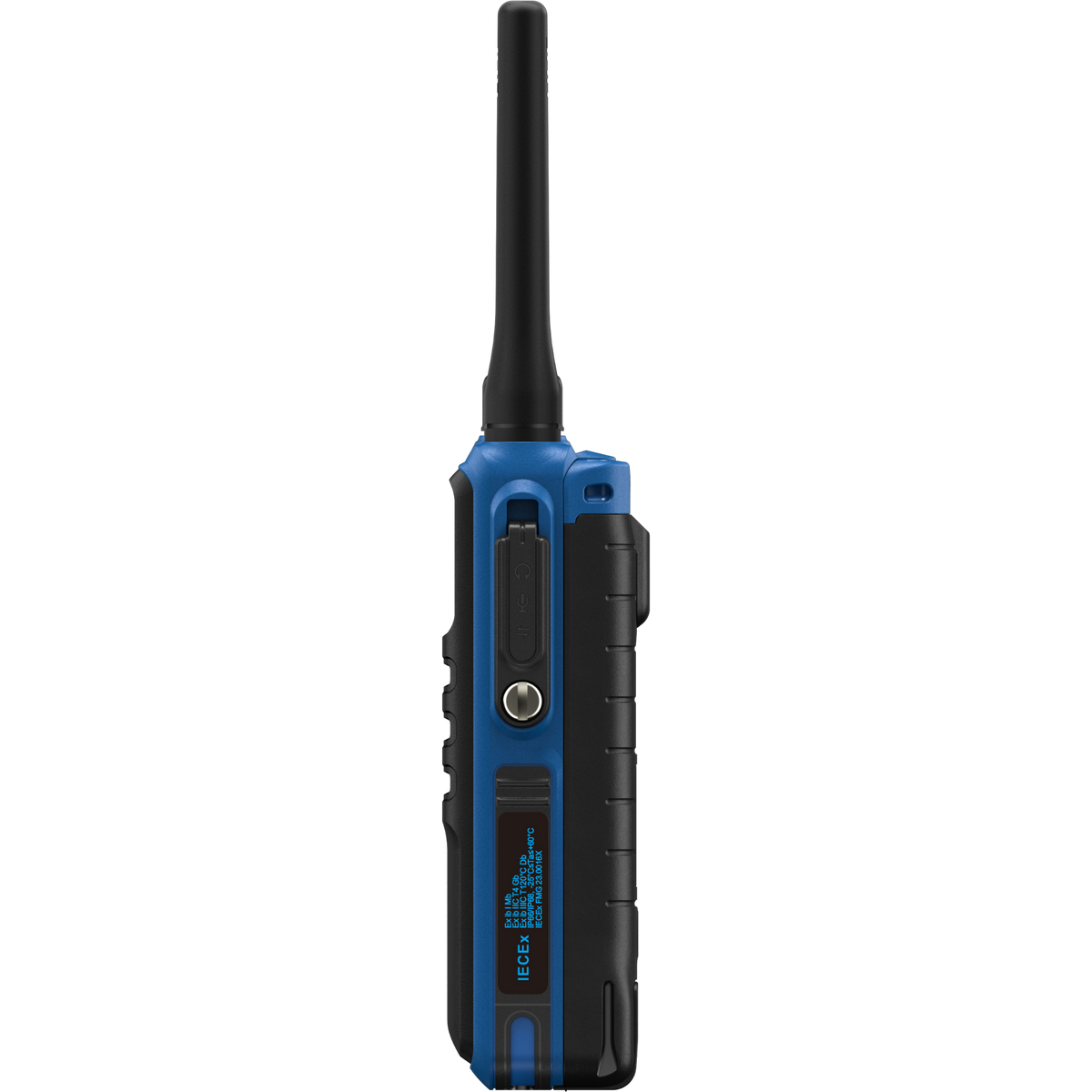

The Hytera HP715Ex uses a battery protection plate and a lock, specifically so that a dropped radio cannot shed its pack and spark.
Hytera's PD795IS uses a patented latch that has to be moved along two different axes to release. You cannot do it by knocking it against something.
Entel's DTEx range and Motorola's DP4000 Ex Series take the same approach with locking mechanisms and captive fixings.
None of that helps if someone opens it deliberately in the wrong place.
## What good practice looks like
**Size the battery to the shift.** This is the real fix. If nobody runs out, nobody is tempted.
Modern ATEX radios are good at this. The Motorola R7Ex IIC runs up to 23.5 hours in digital mode. The Entel DT982 gives 19.5 hours in digital. The Hytera HP715Ex gives 24 hours with GNSS off, 21 with it on.
Those figures are quoted on a 5/5/90 duty cycle — five per cent transmitting, five per cent receiving, ninety per cent standby — at maximum power. Heavy talkers and GPS tracking will pull them down. Specify with headroom.
**Issue a charged radio at the start of every shift.** Multi-unit chargers in the muster area, not spare batteries in pockets.
**Ban spare packs in the zone.** If a spare battery is not carried in, it cannot be fitted in.
**Manage battery ageing.** Lithium-ion packs lose capacity with cycles. A three-year-old battery giving eight hours instead of nineteen is how mid-shift swaps start happening. Several radios now report battery health on screen — use it, and replace packs on a schedule rather than on failure.
**Charge outside the zone.** Chargers are not ATEX equipment. They belong in a safe area, and that is where they should be installed.
## The message that actually works
Telling people "it voids the certification" gets you a shrug.
Telling them "opening that radio in here can make a spark, and this is a place where a spark starts a fire" gets you compliance.
Put it in the induction. Put it on the charger rack. Make it as familiar as no smoking and no mobile phones.
