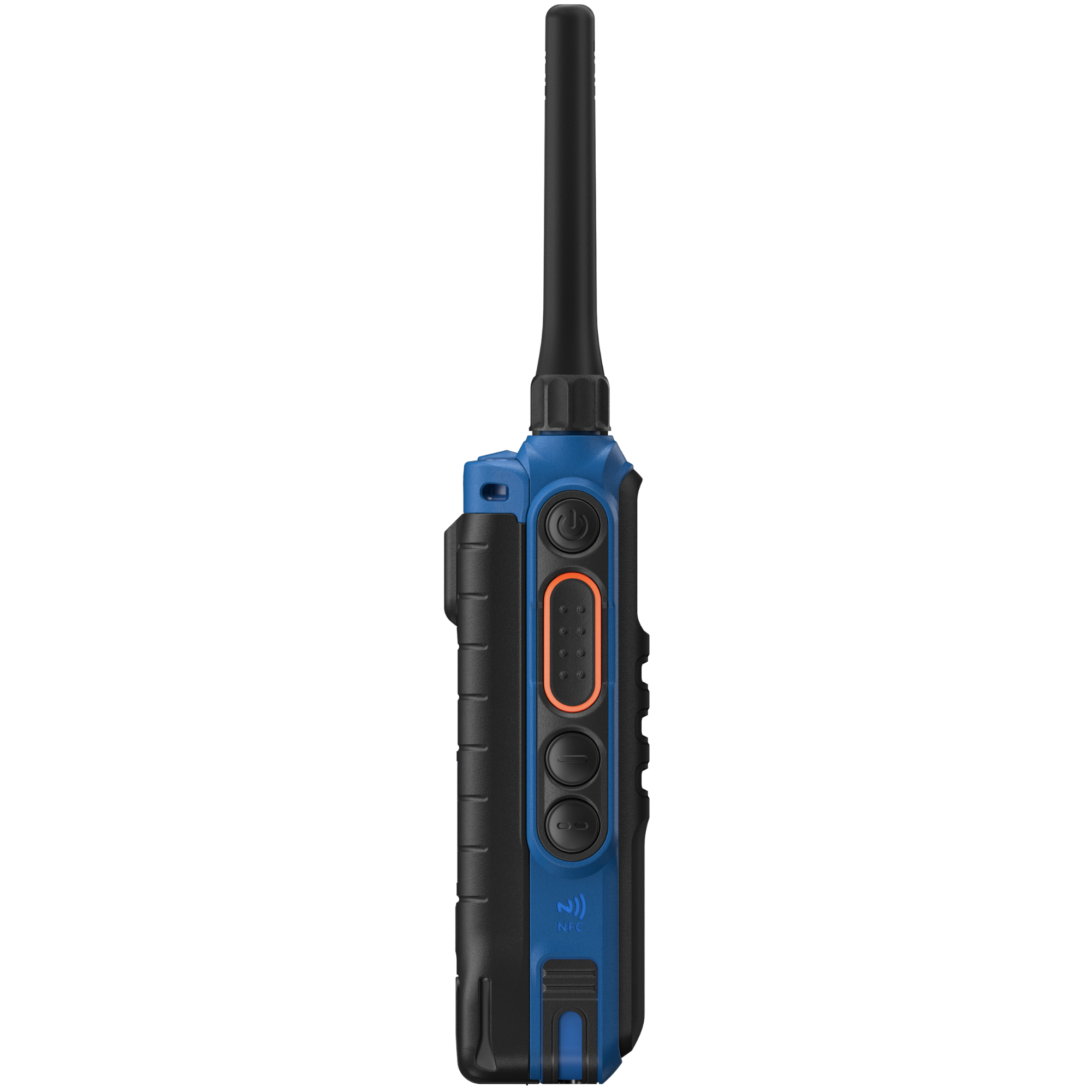

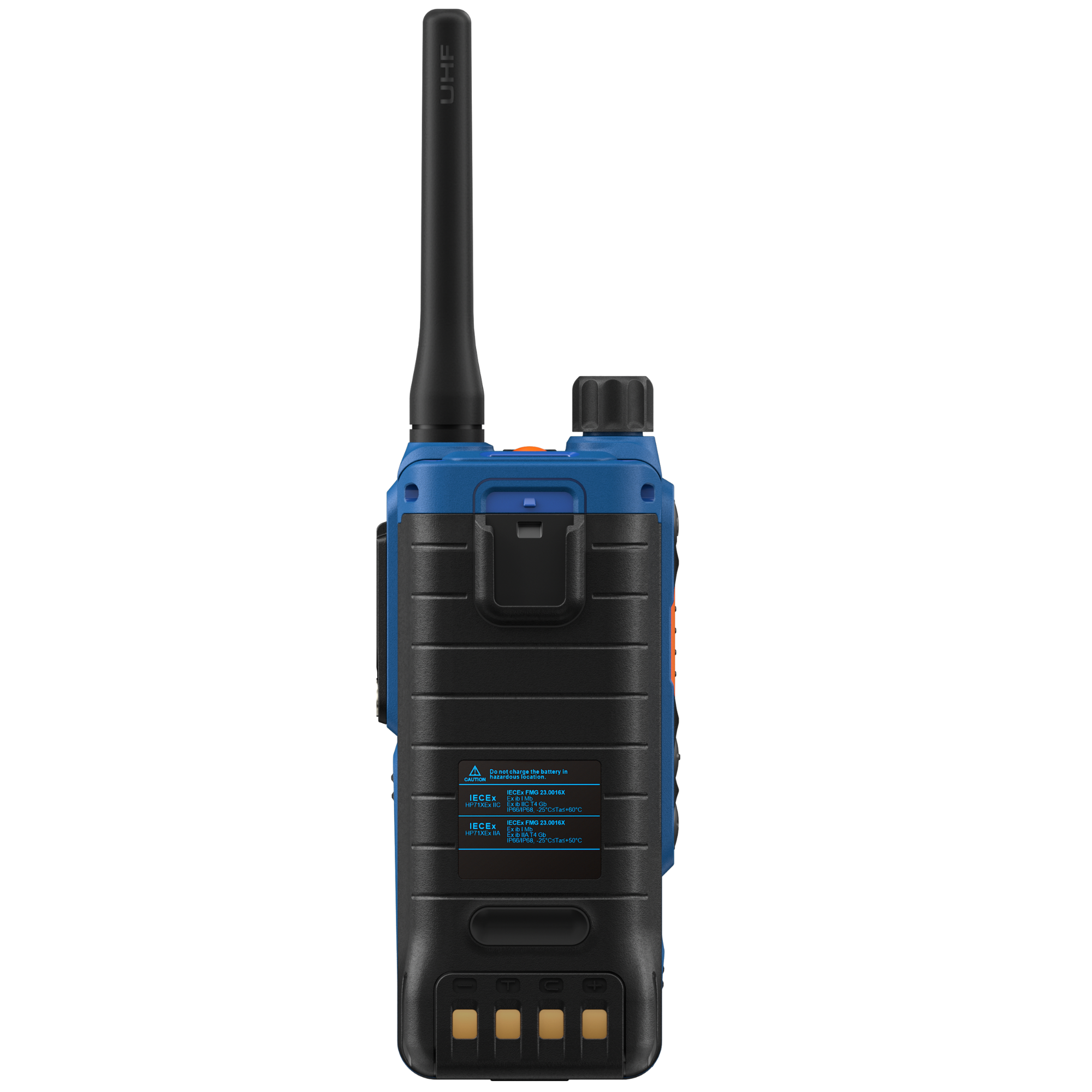

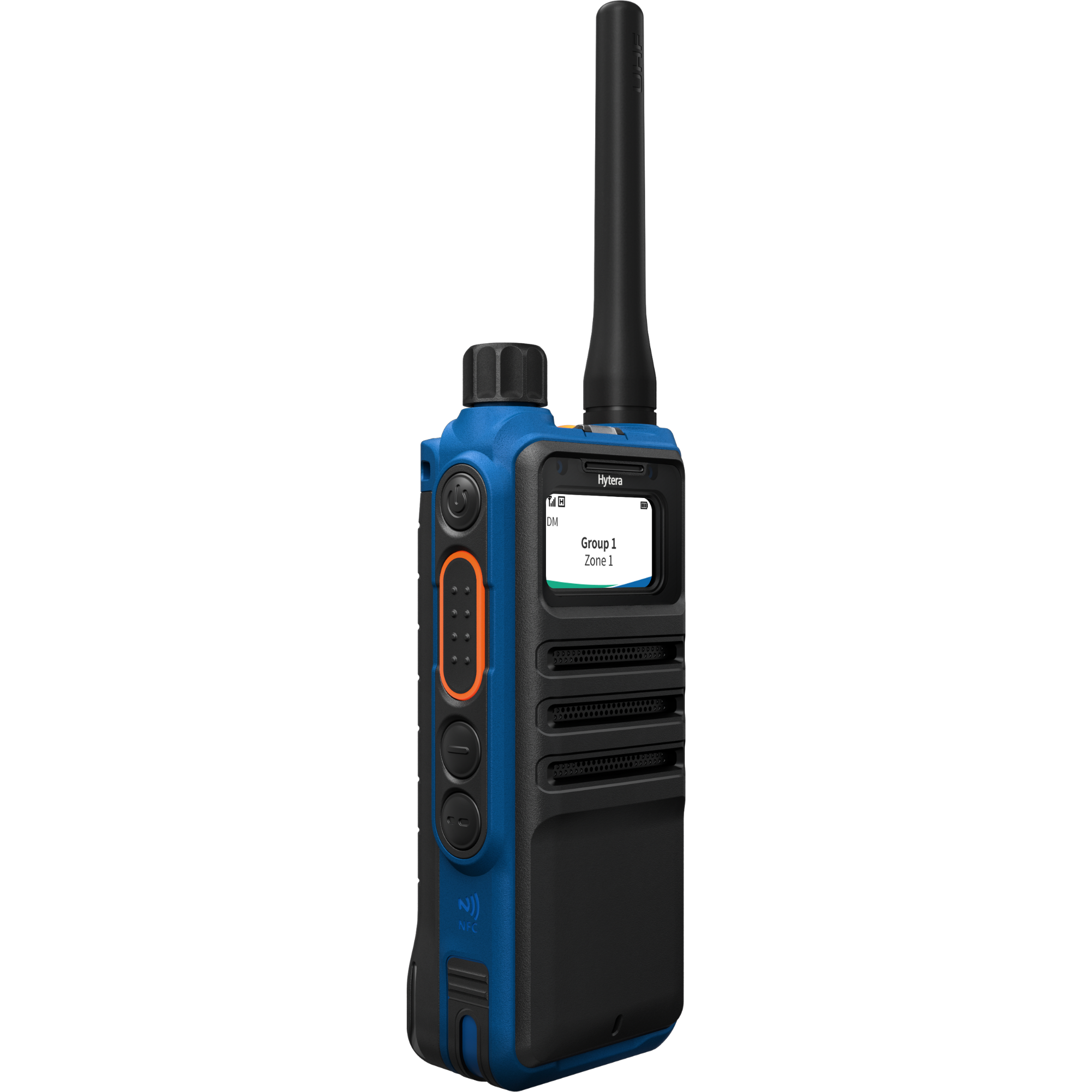

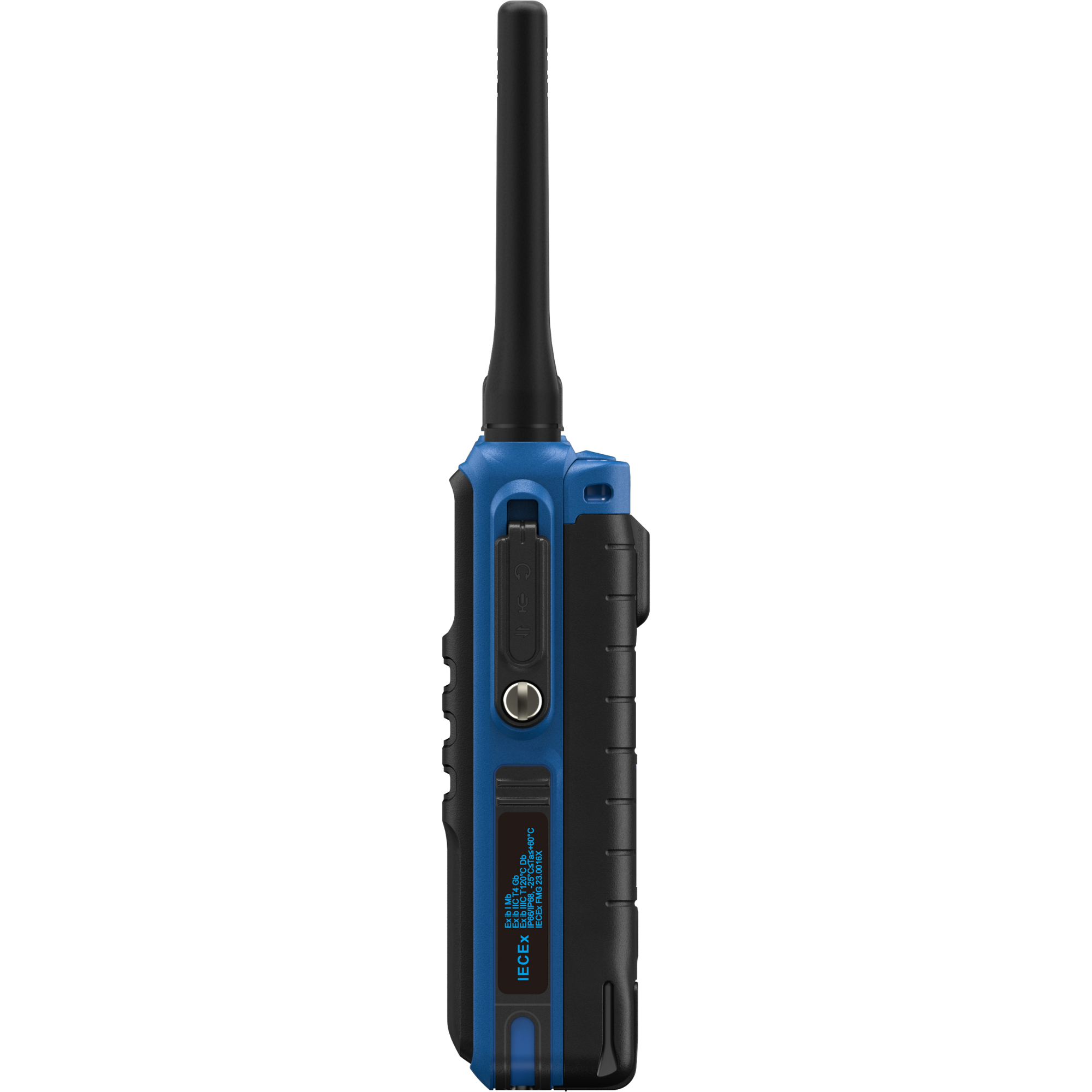

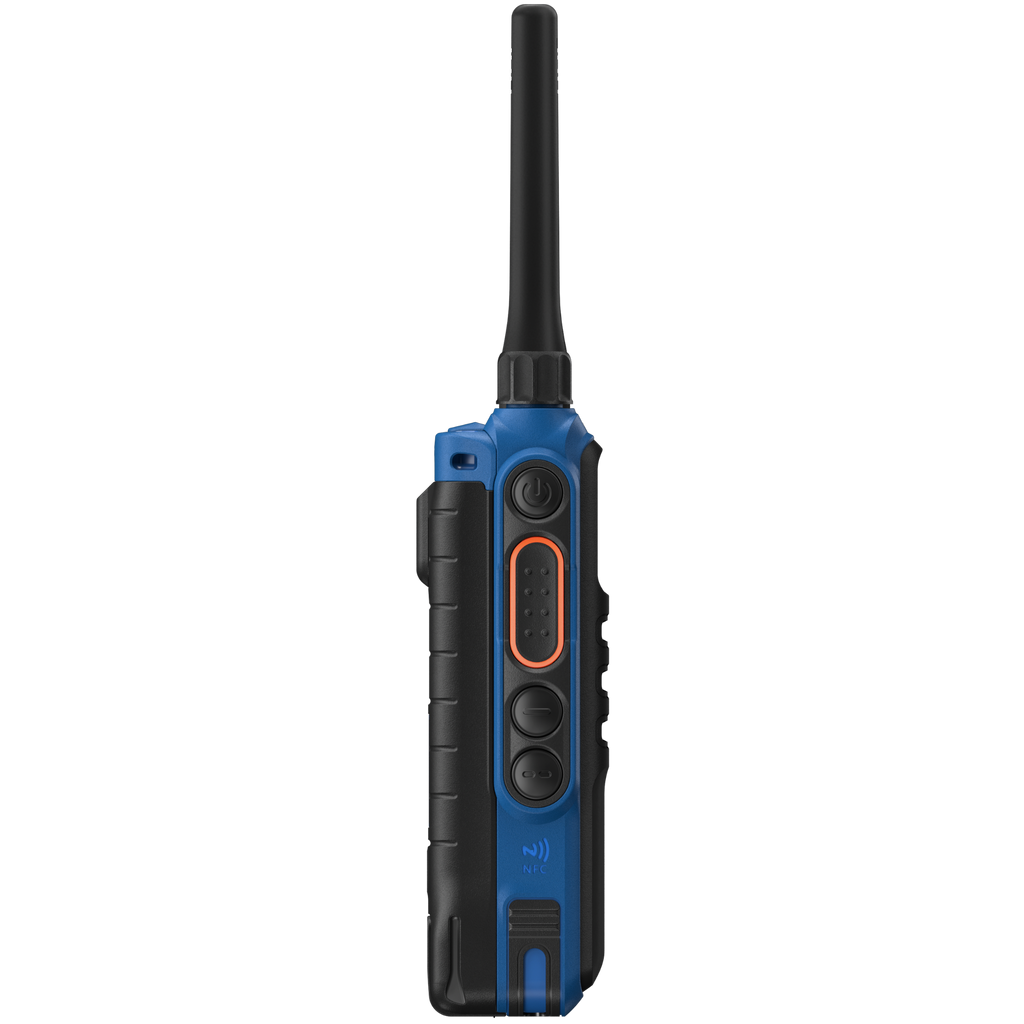

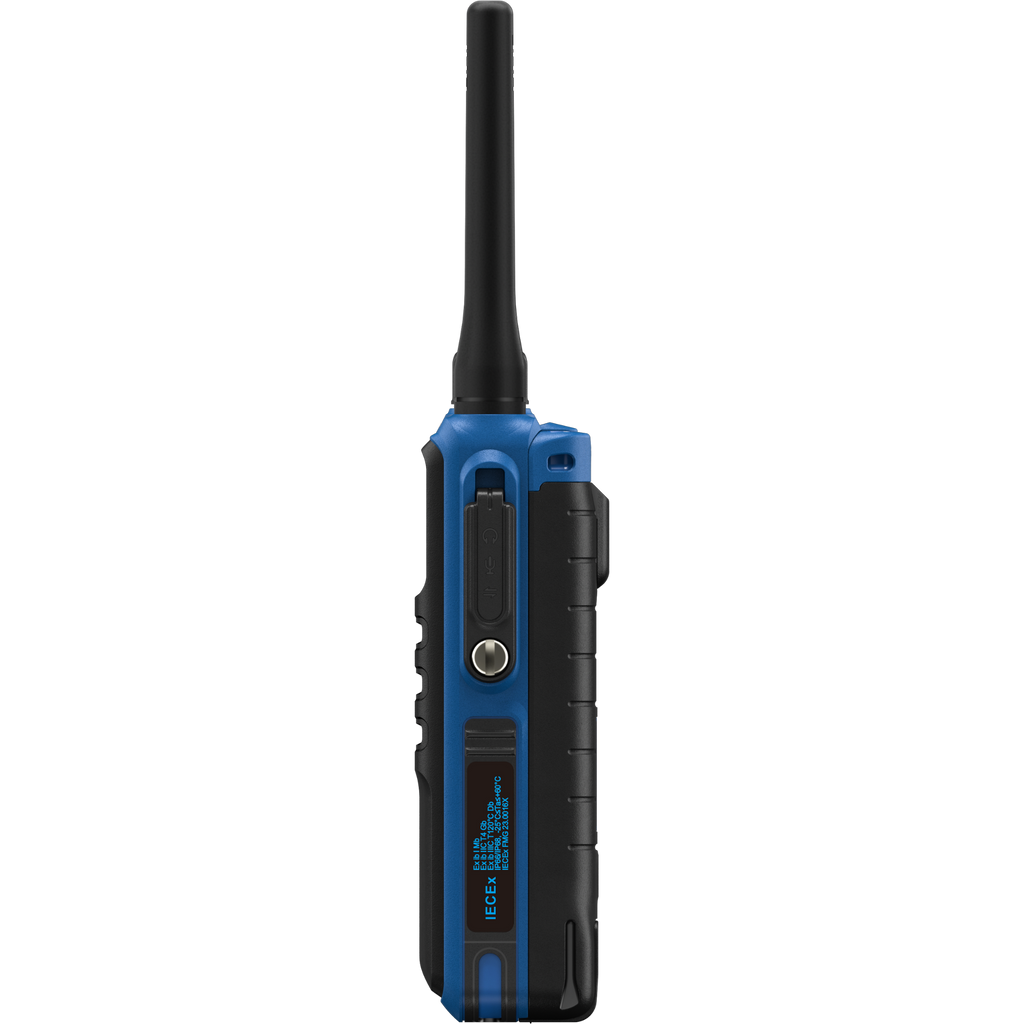

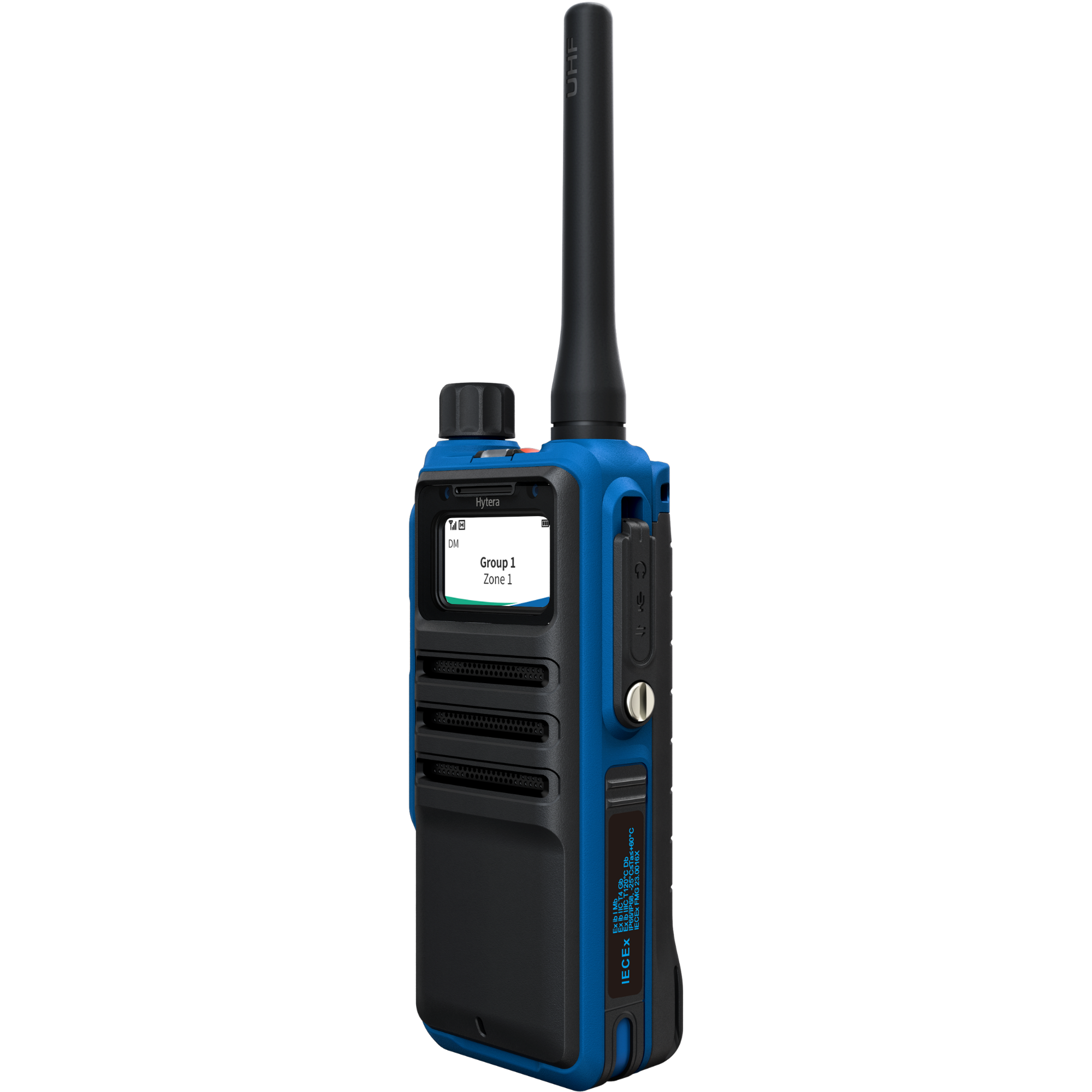

Hytera HP715Ex IIC Intrinsically Safe DMR Two-Way Radio (ATEX / IECEx)

The Hytera HP715Ex IIC is an intrinsically safe DMR (Digital Mobile Radio) portable two-way radio built for hazardous areas — places where explosive gas, combustible dust or chemical vapour make an ordinary radio a genuine ignition risk.

It is certified to IECEx and ATEX standards for Zone 1 gas and Zone 21 dust environments. The IIC gas group is the highest classification, covering acetylene and hydrogen atmospheres.

Typical users: oil and gas, chemical and pharmaceutical plants, mining, fire and rescue, food processing, steel and airport operations.

Certification

• IECEx: Ex ib I Mb / Ex ib IIC T4 Gb / Ex ib IIIC T120°C Db
• ATEX: I M2 Ex ib I Mb / II 2G Ex ib IIC T4 Gb / II 2D Ex ib IIIC T120°C Db
• Ambient range: -25°C to +60°C in the hazardous area, -30°C to +60°C outside it
• Ingress protection: IP66 / IP67 / IP68 (dust-tight and submersible), tested per IEC 60079-0:2017 and IEC 60529
• Ruggedness: MIL-STD-810H shock, vibration and drop testing

Safety features

• Lone Worker — if the radio detects no activity within a preset time, it raises an alarm and reports the user's location.
• Man Down — a sudden tilt towards the ground triggers an automatic alert to colleagues or the control room.
• Precise positioning — GPS, BeiDou, GLONASS and Galileo, with dual-frequency (L1/L5) accuracy down to one metre.
• Anti-fake battery detection — a non-original battery triggers an on-screen prompt and a flashing red LED.

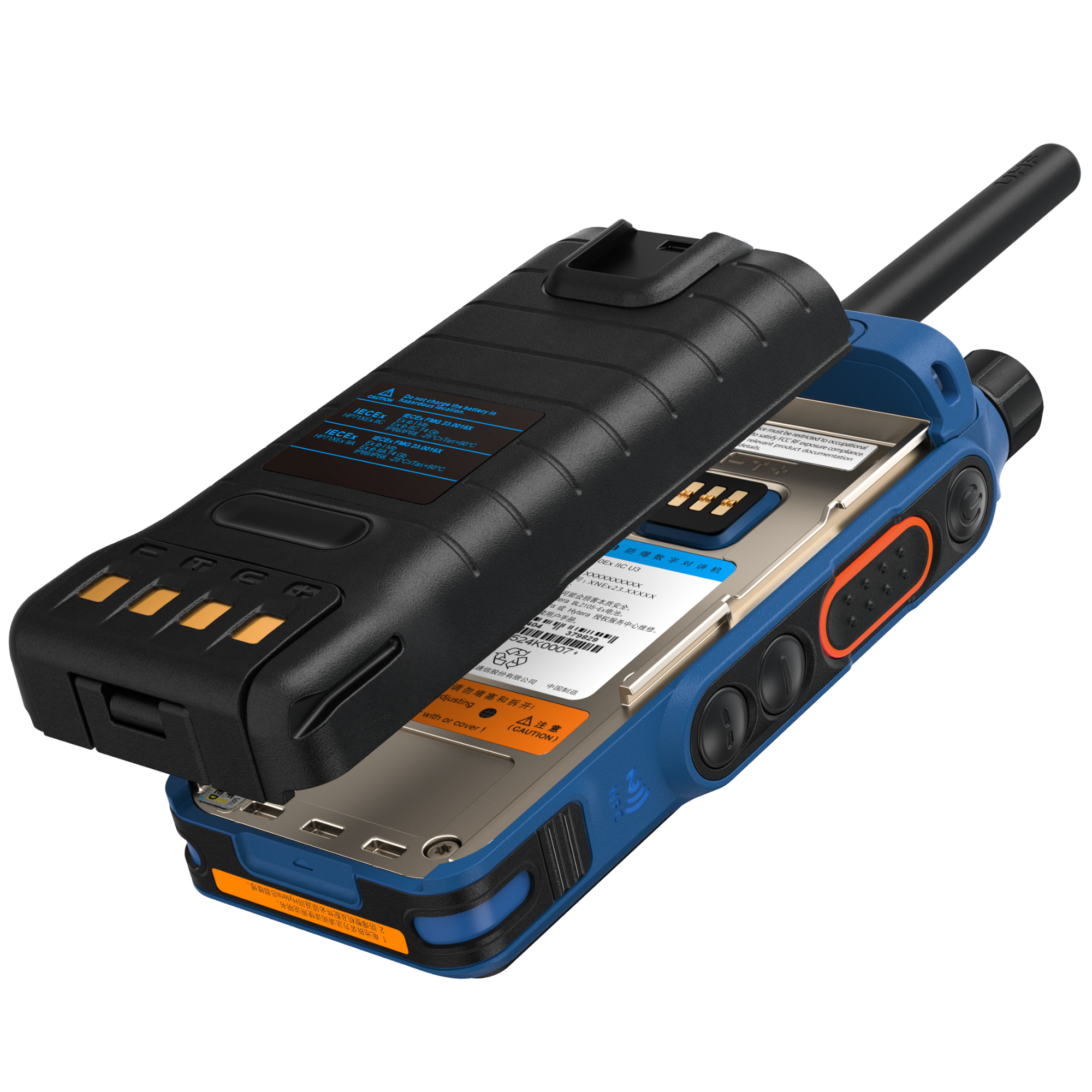

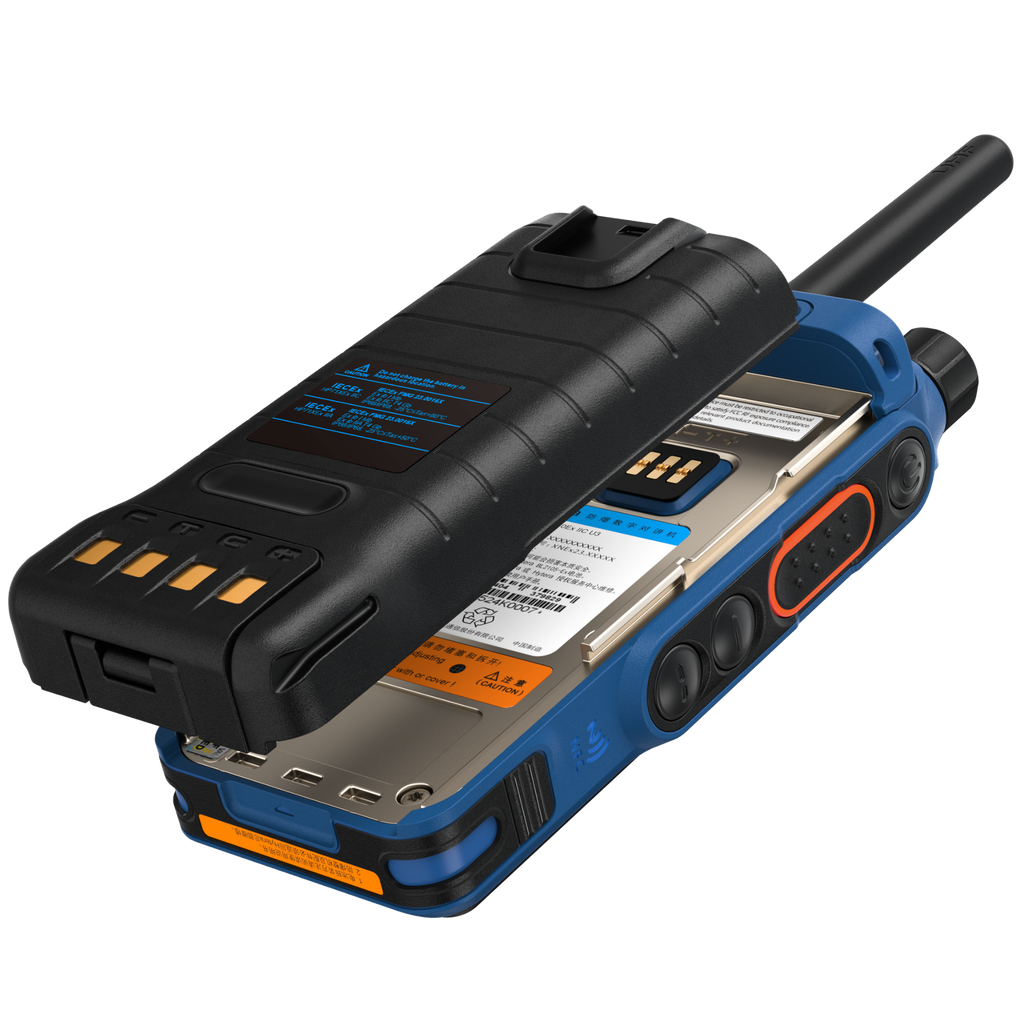

• Locked battery — a protection plate and lock stop the battery detaching on impact, so no spark risk from a dropped radio.
• Anti-static construction — dual-material housing resists the static build-up that can cause ignition.
• Encrypted and recorded voice — critical calls can be encrypted and recorded to TF card or GOB board.

Performance

• 2 W transmit power with 0.16 µV receive sensitivity for extended range
• 2 W speaker at 88 dB, with AI-based noise cancellation, automatic gain control and howling suppression down to 30 cm radio separation
• Water-porting speaker design that clears water from the acoustic cavity automatically
• Dual antimagnetic mechanism protects the speaker from magnetic metal dust and shavings
• 2150 mAh intrinsically safe battery: 24 hours with GNSS off, 21 hours with GNSS on (5/5/90 duty cycle)
• Bluetooth 5.3, WLAN 2.4 GHz remote management, and an NFC tag for identification

Key specifications

• Frequency range: UHF 400-480 MHz or VHF 136-174 MHz
• Channels / zones: 1024 channels, 64 zones
• Channel spacing: 12.5 / 20 / 25 kHz

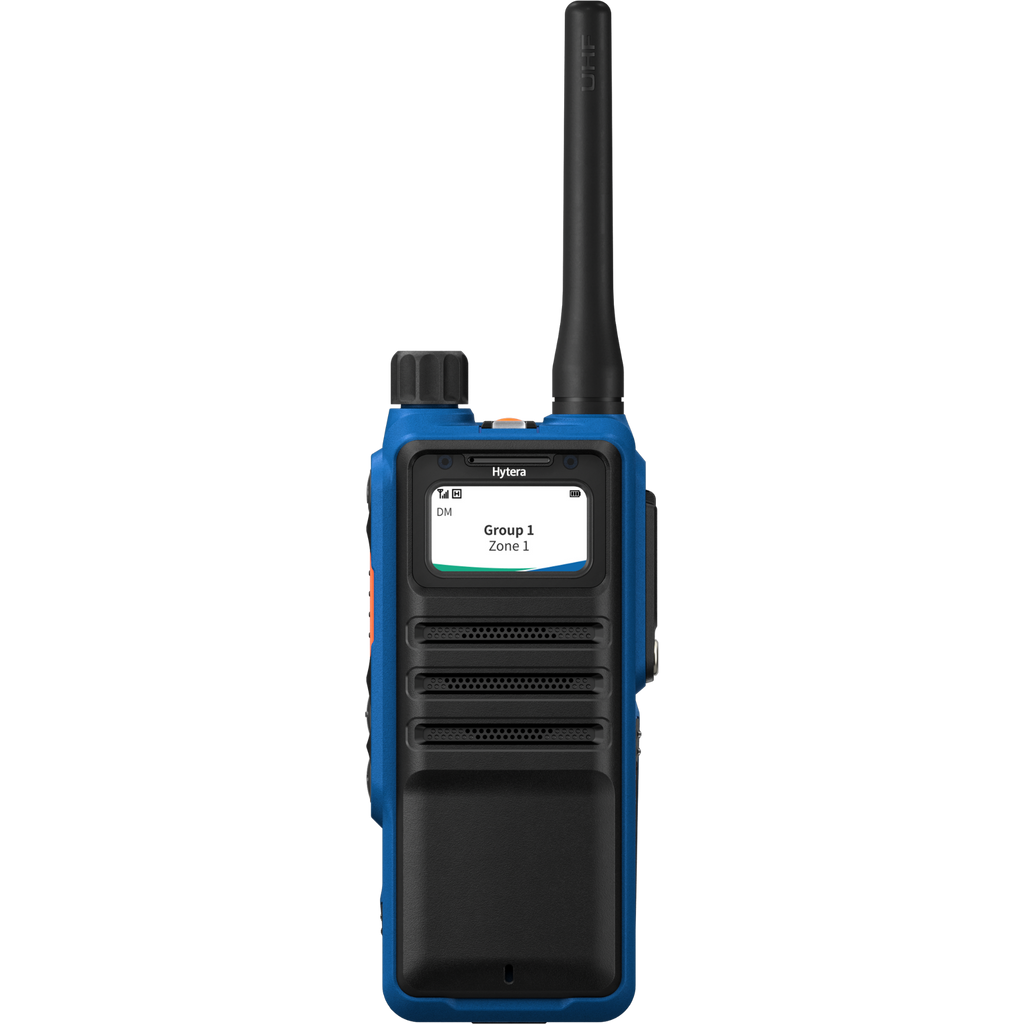

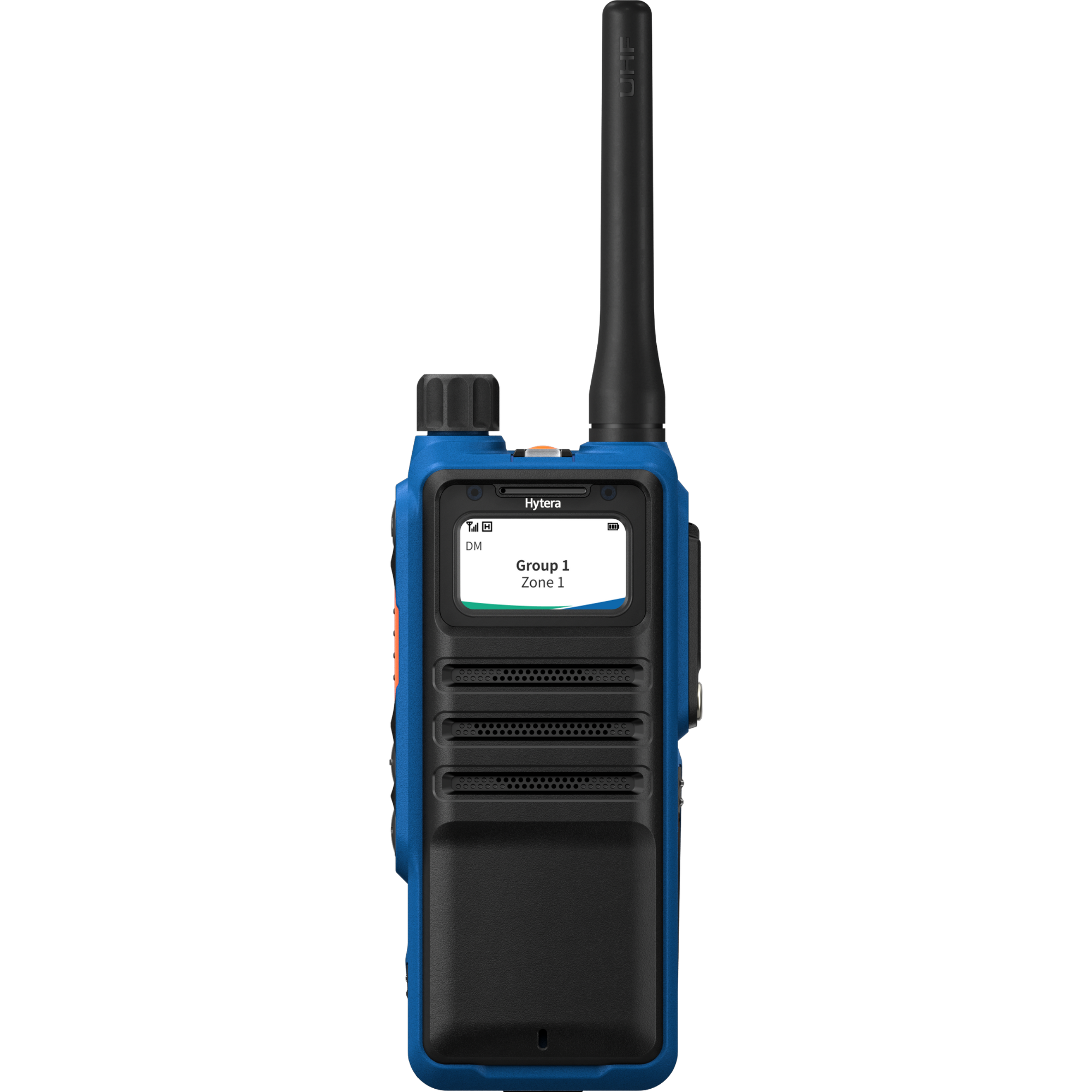

• Display: 1.47-inch colour LCD, 172 x 320 pixels
• Dimensions: 130 x 55 x 37 mm
• Weight: approx. 390 g with battery and antenna
• Digital protocol: ETSI TS 102 361-1, -2, -3 (DMR Tier II)
• Vocoder: AMBE+2

Supplied with

2150 mAh IS battery, charger, power adapter, antenna, belt clip and strap.

Optional accessories include the SM26N13P-Ex remote speaker microphone, EHN38P-Ex earpiece, SM24N2P-Ex adjustable earset, POA176-Ex heavy duty noise-cancelling headset kit, POA63P-Ex large PTT, LCY028 leather case and BC39 belt clip.

Supplied, programmed and supported by Yesway Communications, an authorised Hytera dealer.
