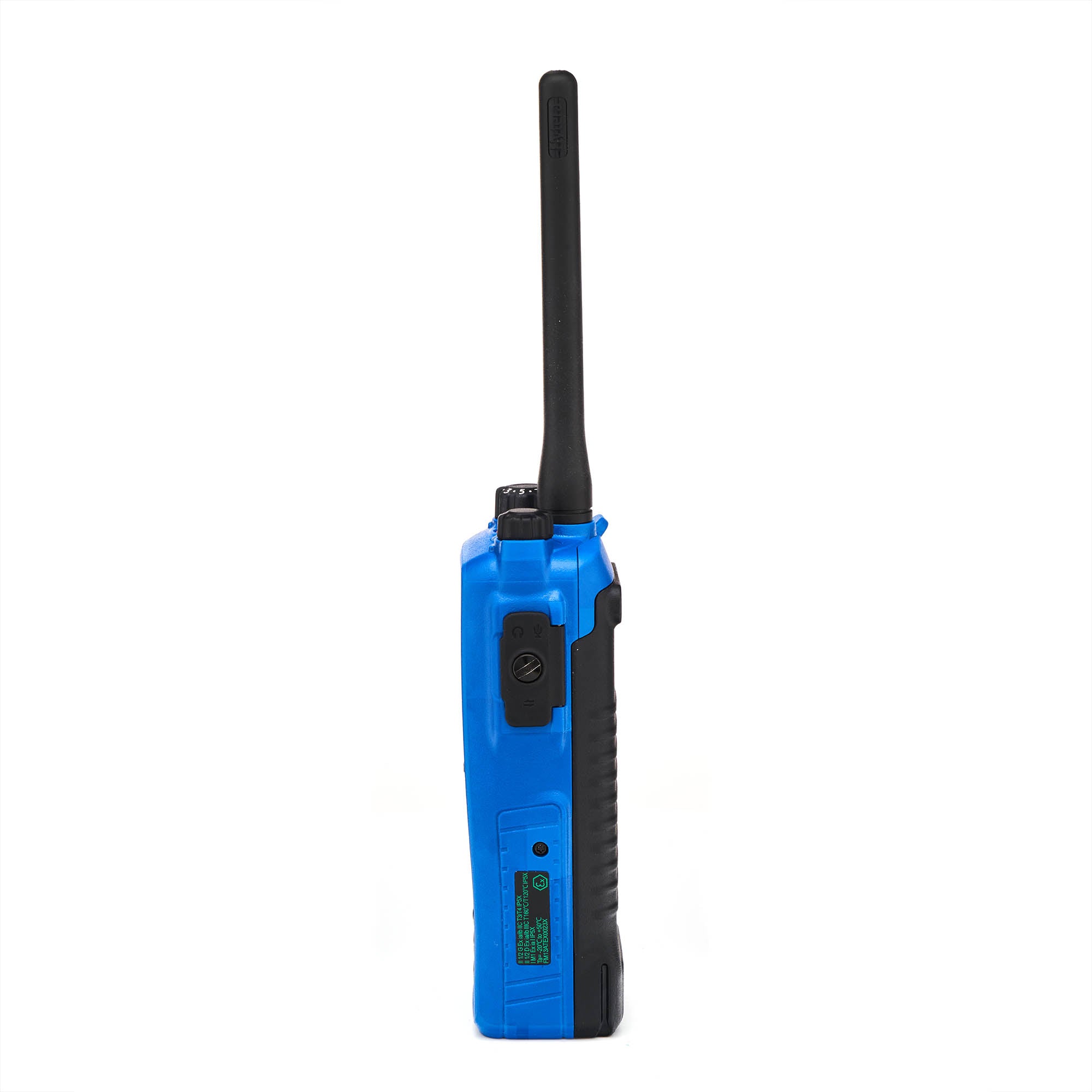

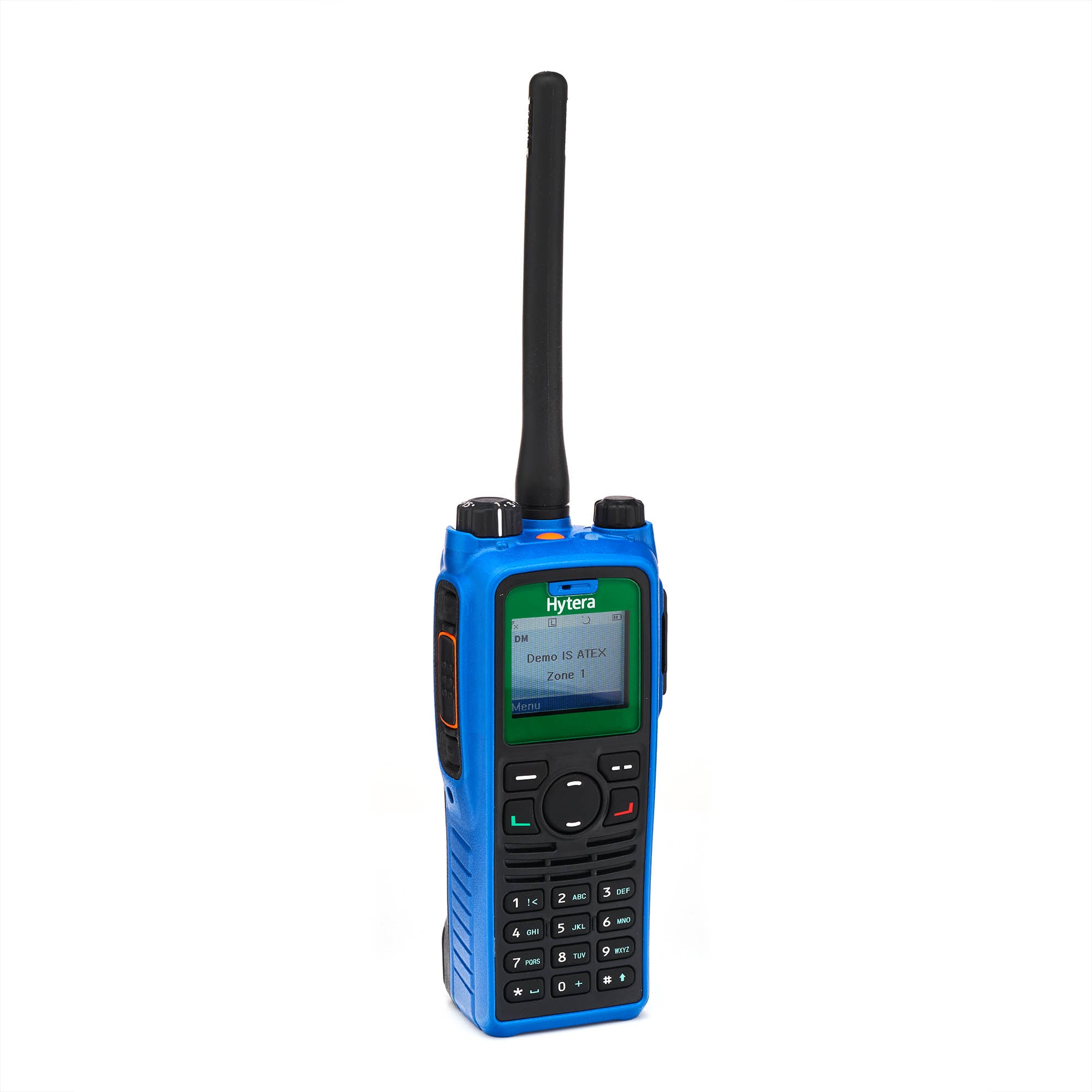

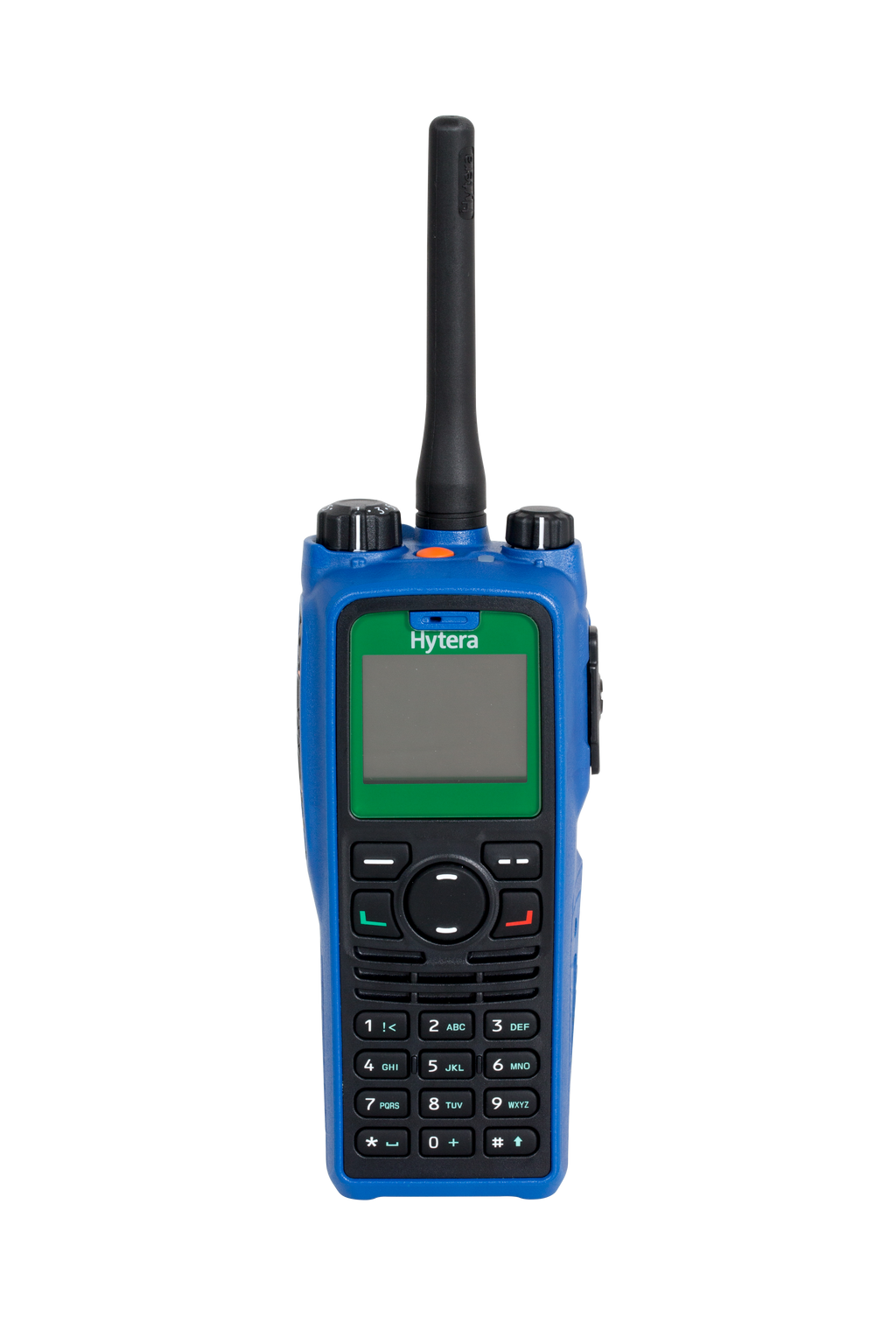

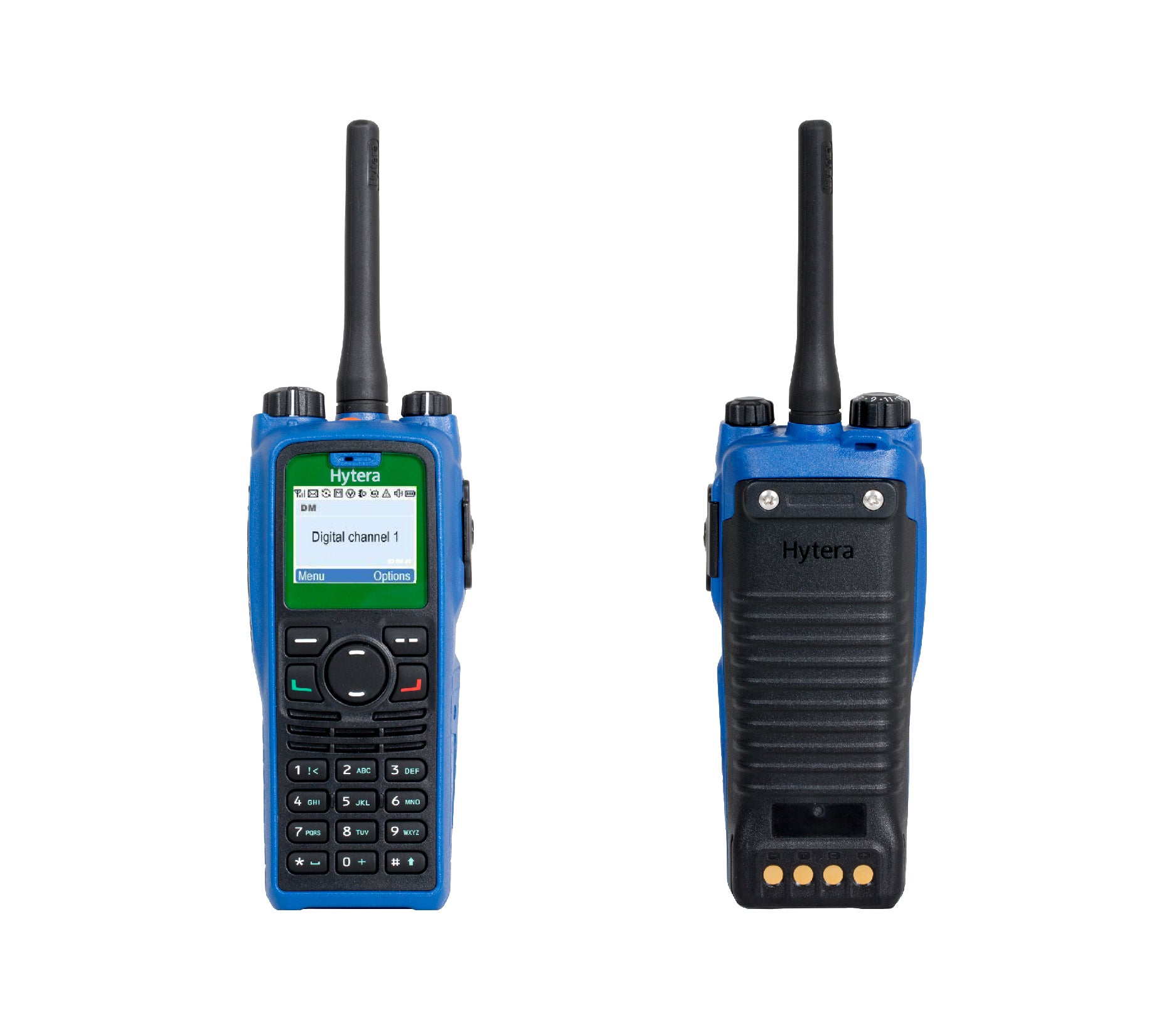

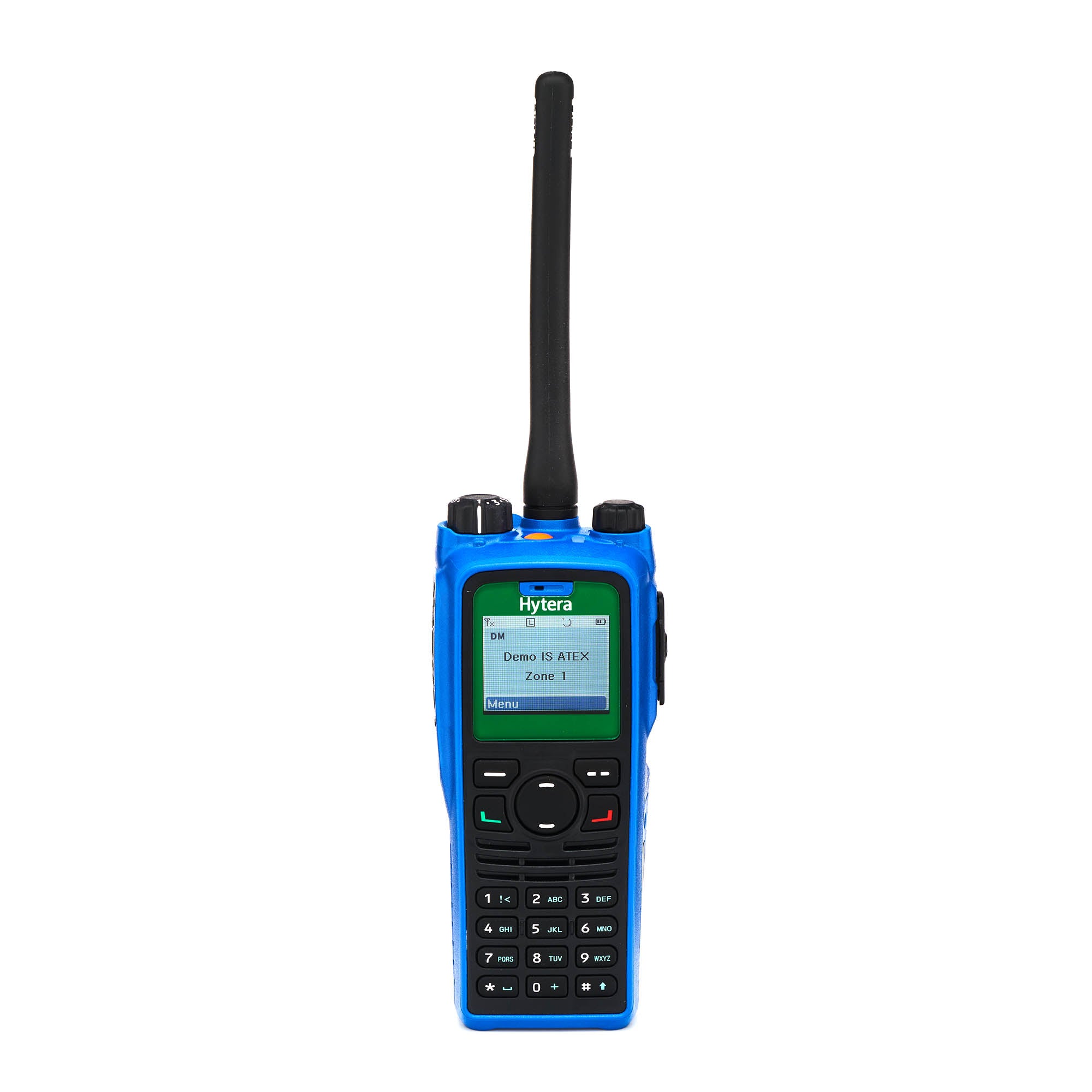

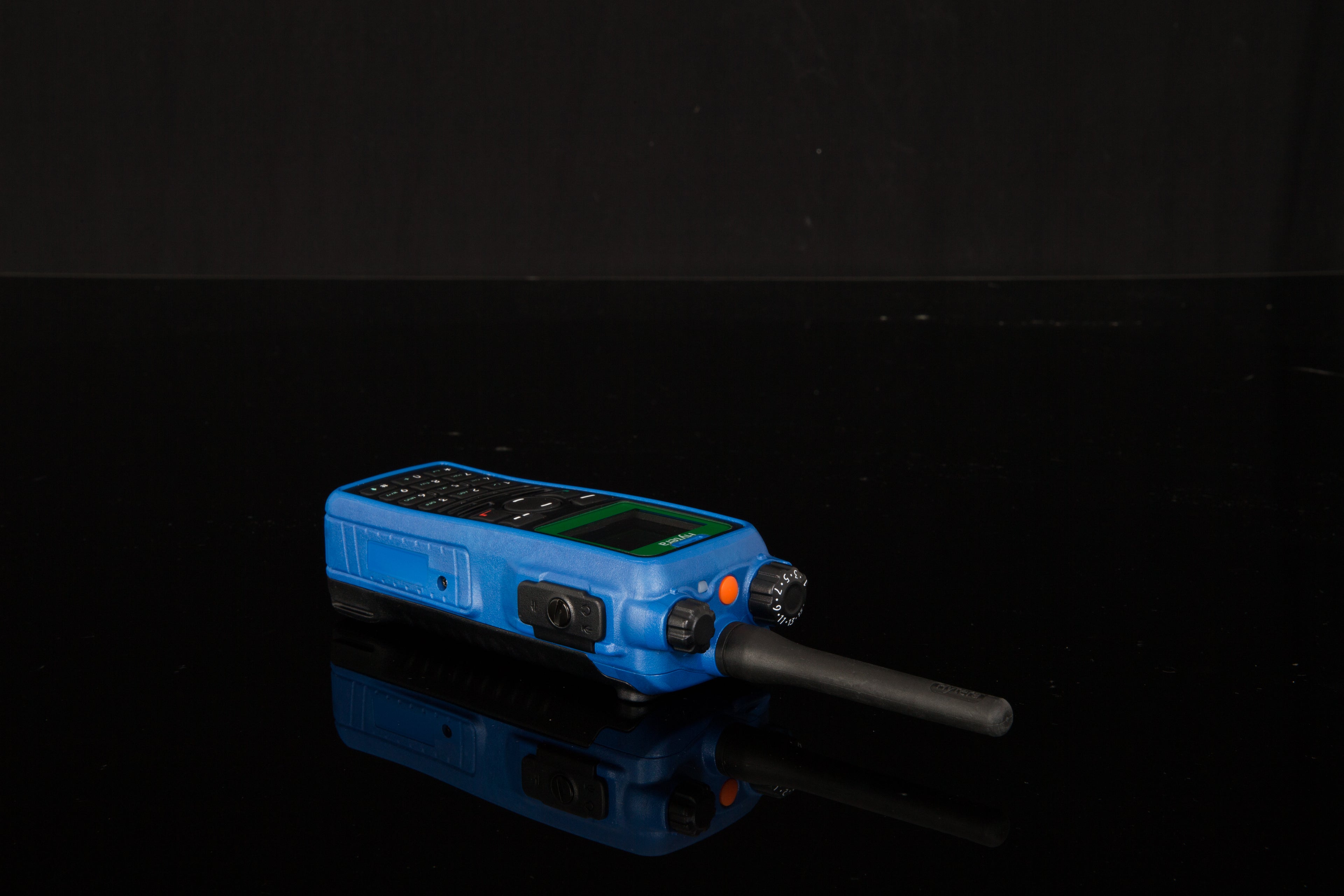

Hytera PD795IS Intrinsically Safe DMR Two-Way Radio (ATEX / IECEx)

The Hytera PD795IS is an intrinsically safe DMR (Digital Mobile Radio) portable two-way radio with a full keypad and colour display, built for hazardous areas where explosive gas, combustible dust or coal mine methane are present.

It is certified to the highest intrinsic safety grade, "ia". That grade means the circuit carries three independent protective measures and stays safe even if two faults occur at once — which is why an "ia" radio can be used in Zone 0, the most tightly controlled classification, as well as Zones 1 and 2.

It also carries Group I M1 mining certification, so it can remain in use during a gas outbreak underground rather than having to be withdrawn.

Typical users: oil and gas, coal mining, chemical plants, gas stations, flour mills, fire and rescue and airport operations.

Certification

• ATEX: II 1G Ex ia IIC T3 (gas) / II 1D Ex ia IIIC T160°C IP5X (dust) / I M1 Ex ia (mining)
• IECEx: Ex ia IIC T3 Ga / Ex ia IIIC T160°C Da / Ex ia I Ma
• FM / CSA: Class I Division 1 Groups A, B, C, D T3B; Class I Zone 0 AEx ia IIC T3; Class II and III Division 1 Groups E, F, G T160°C
• Ingress protection: IP67 — dust-tight, and protected against immersion in one metre of water for 30 minutes
• Ruggedness: MIL-STD-810 C/D/E/F/G shock, vibration and environmental testing

Operating temperature

• -30°C to +60°C in a non-hazardous area
• -20°C to +50°C in a hazardous area
• -20°C to +55°C in a hazardous area rated Gas T3

Safety features

• Lone Worker — if the radio is not operated within a preset period, the emergency function triggers automatically.
• Man Down — the radio detects a fall and alerts other team members without the user having to press anything.
• GNSS positioning — built-in GPS, GLONASS and BeiDou support, with tracking sensitivity to -164 dBm.

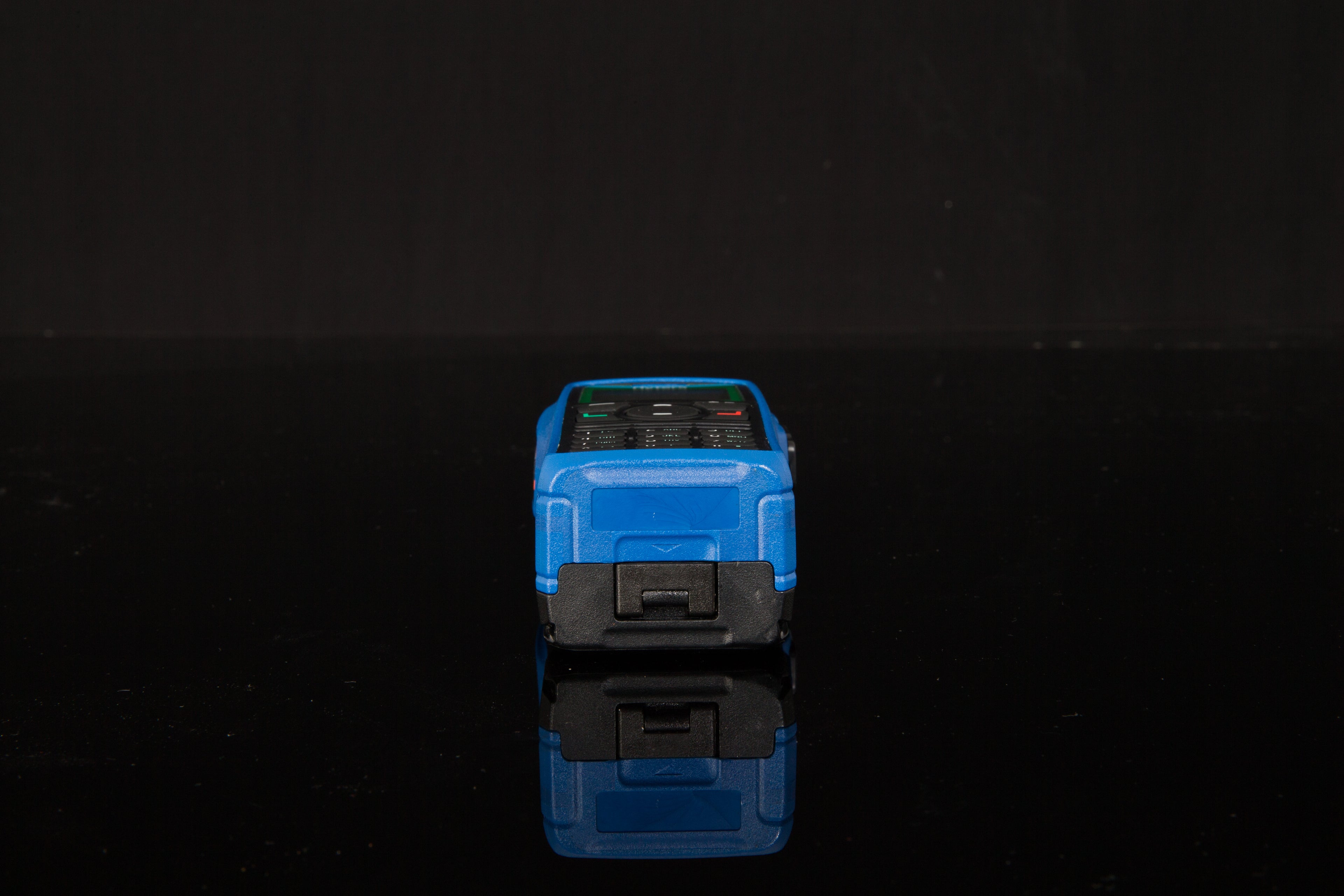

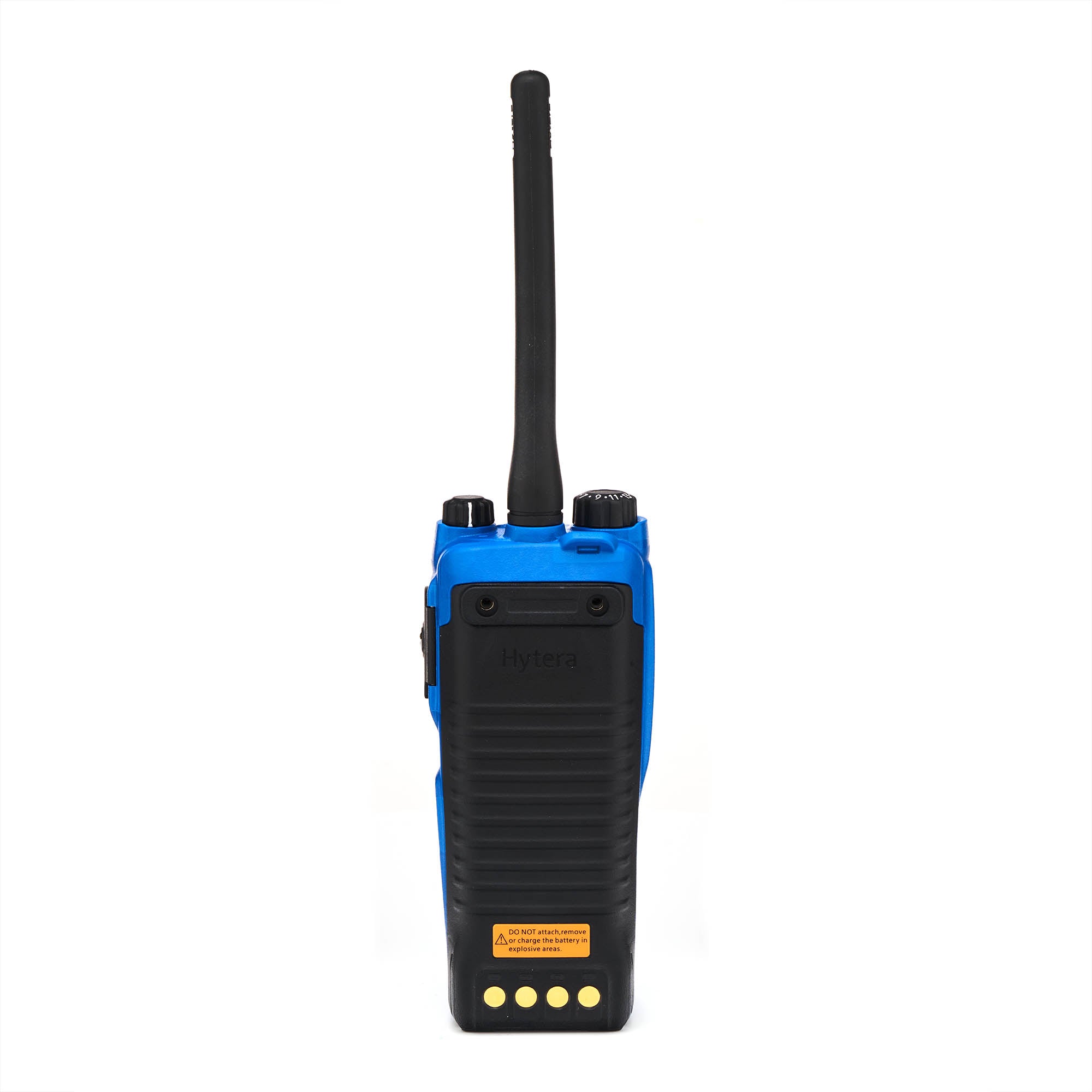

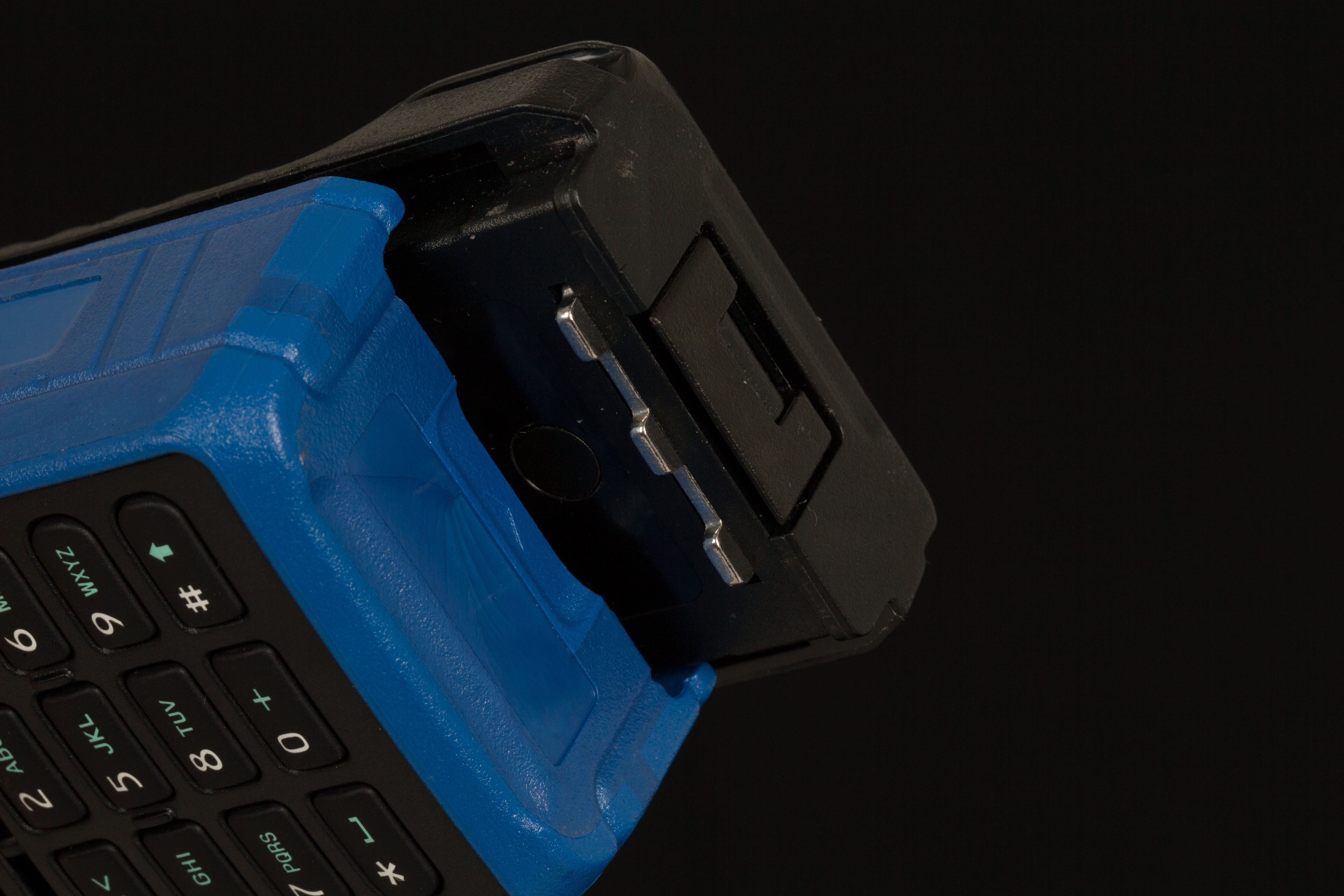

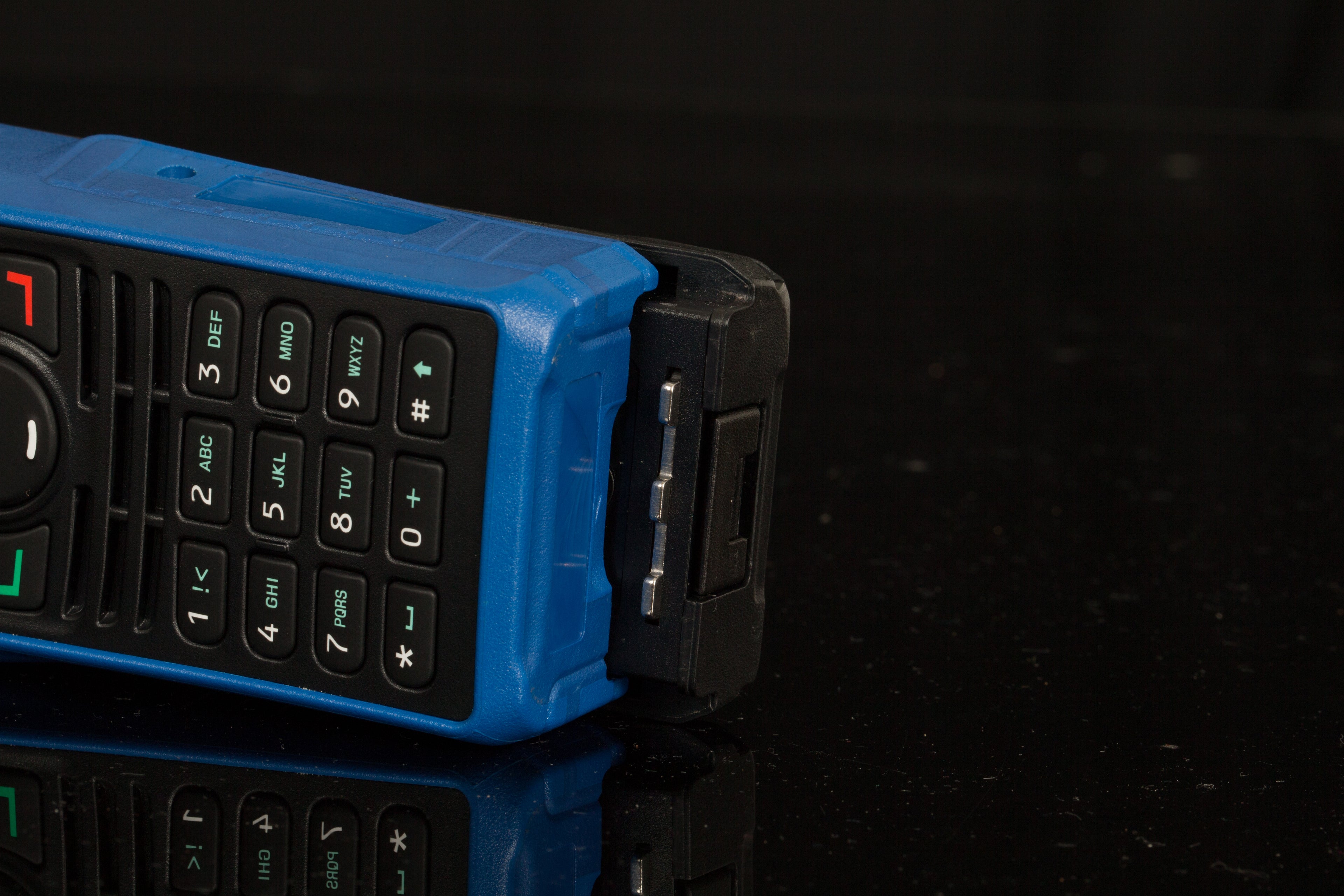

• Patented battery latch — releasing the battery requires moving a lock and bolt along two different axes, so a drop cannot separate the pack from the radio and create a spark.
• Silicone encapsulation — the internal circuits are sealed against liquid, inflammable dust and explosive gas.
• Antistatic construction — dual-material moulding on the display and shell reduces static discharge.

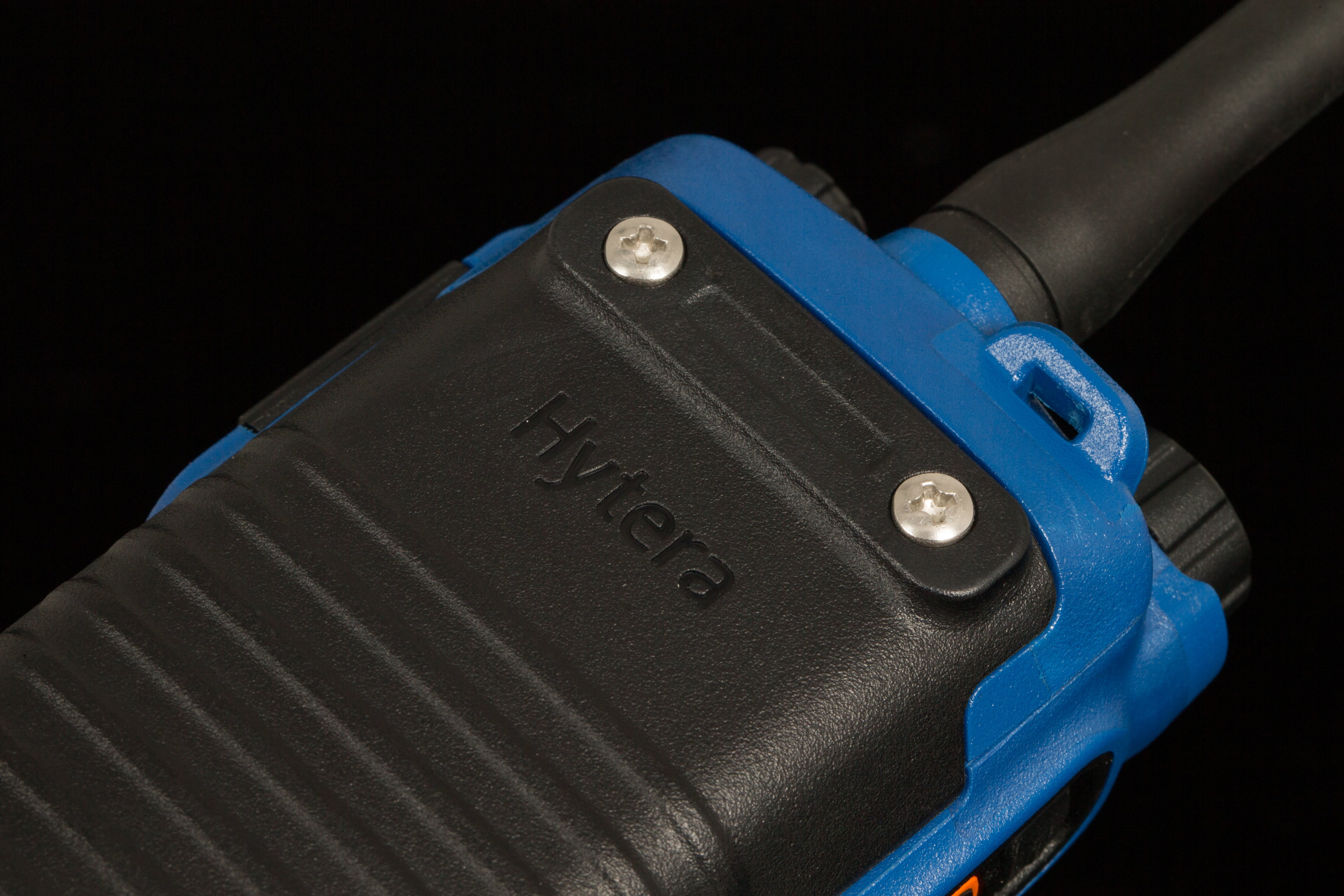

• Internally trapped belt clip screw — no metal-to-ground contact if the radio is dropped.
• Light metal chassis — chosen so that impact cannot produce a mechanical spark.

Design and usability

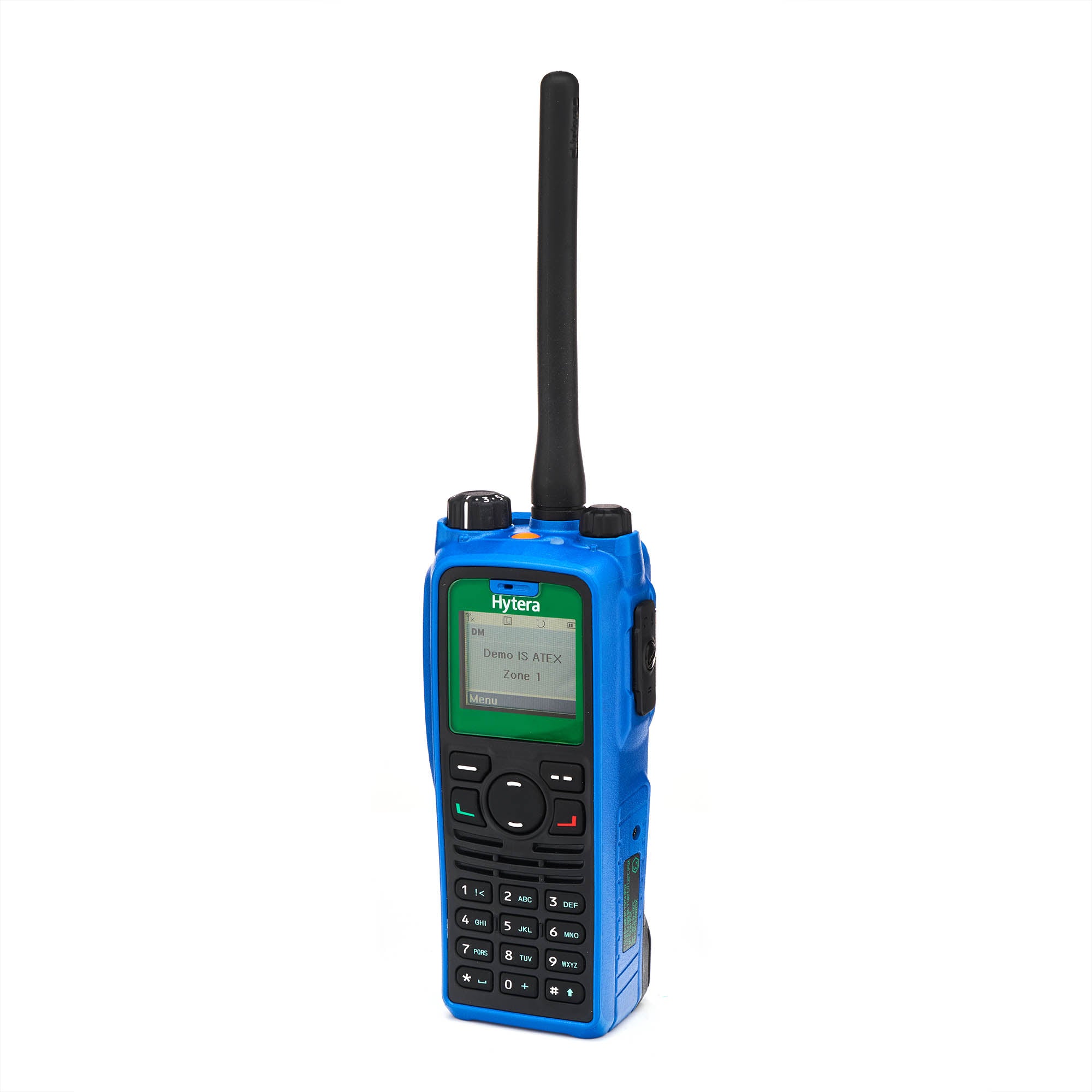

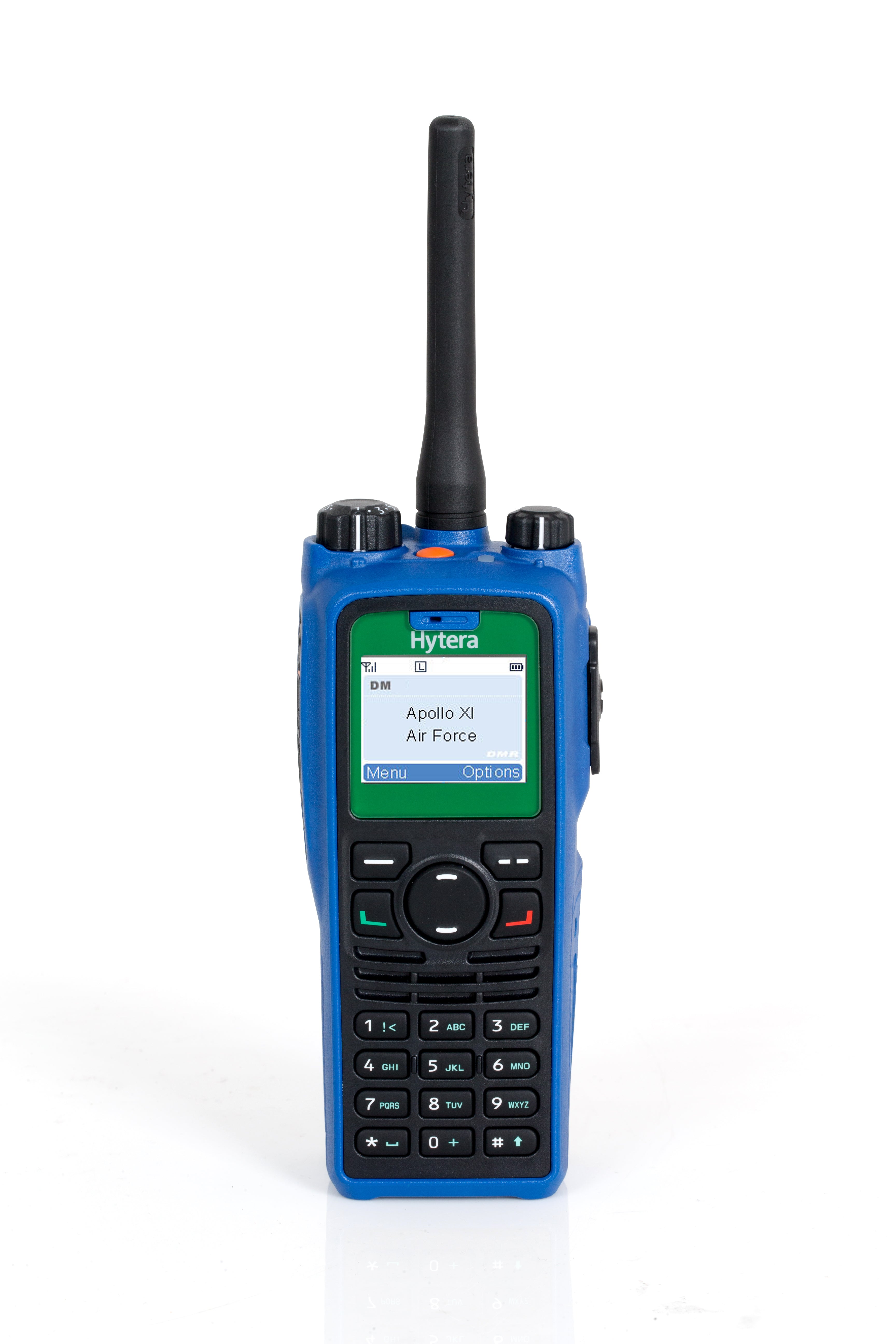

• 1.8-inch 65,536-colour LCD, 160 x 128 pixels, six rows, readable in bright sunlight

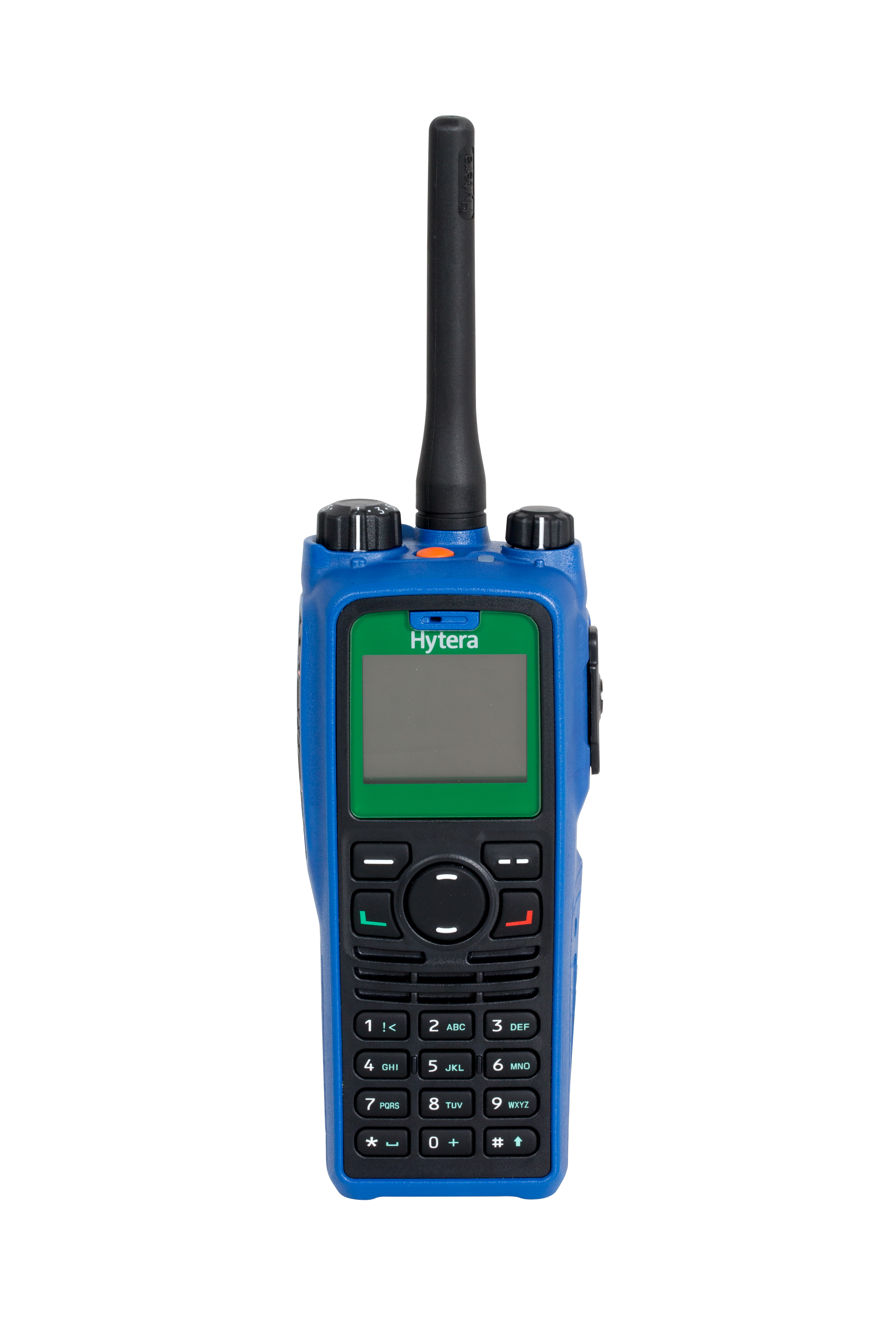

• Full keypad with up to 20 programmable keys, including five dedicated programmable buttons

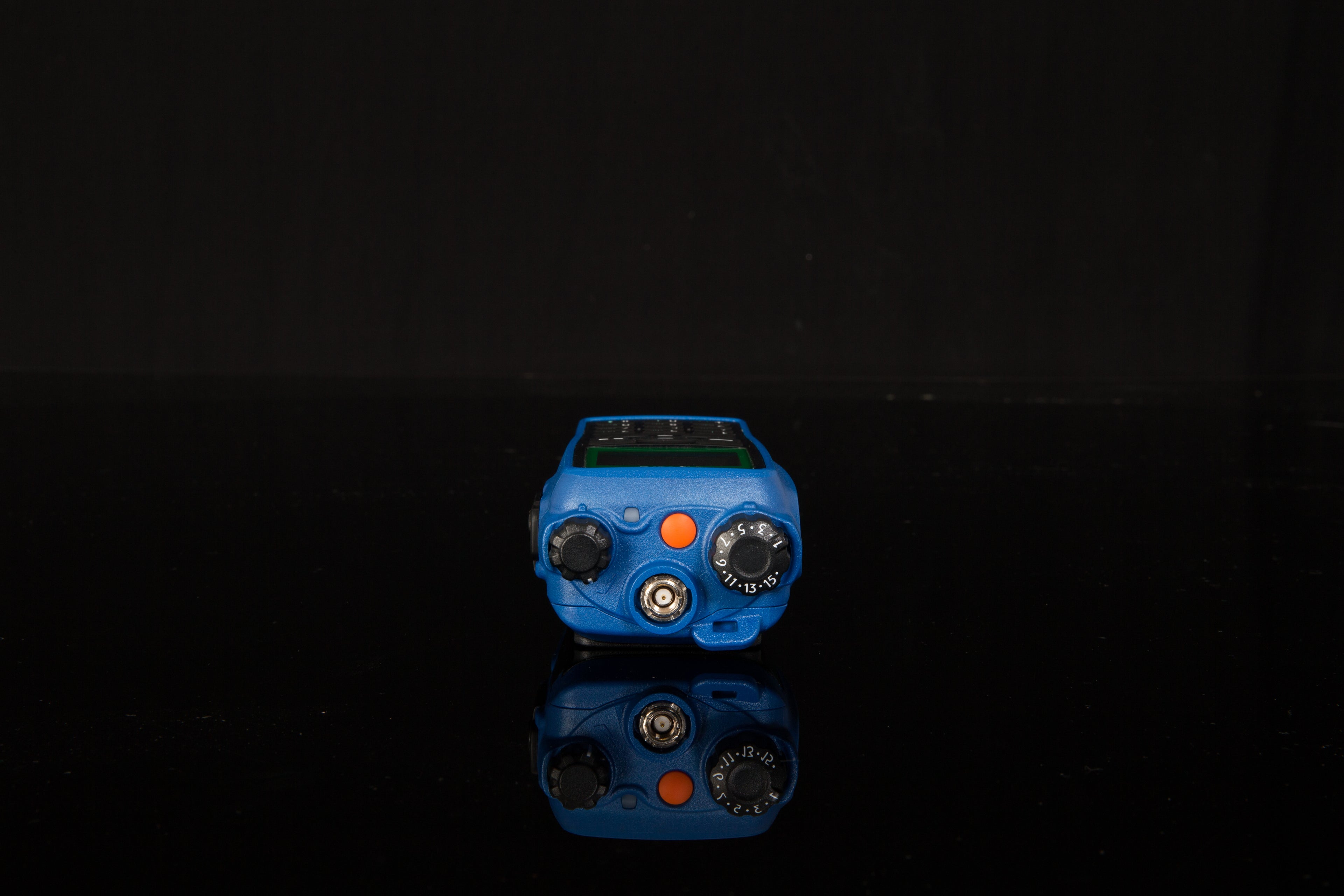

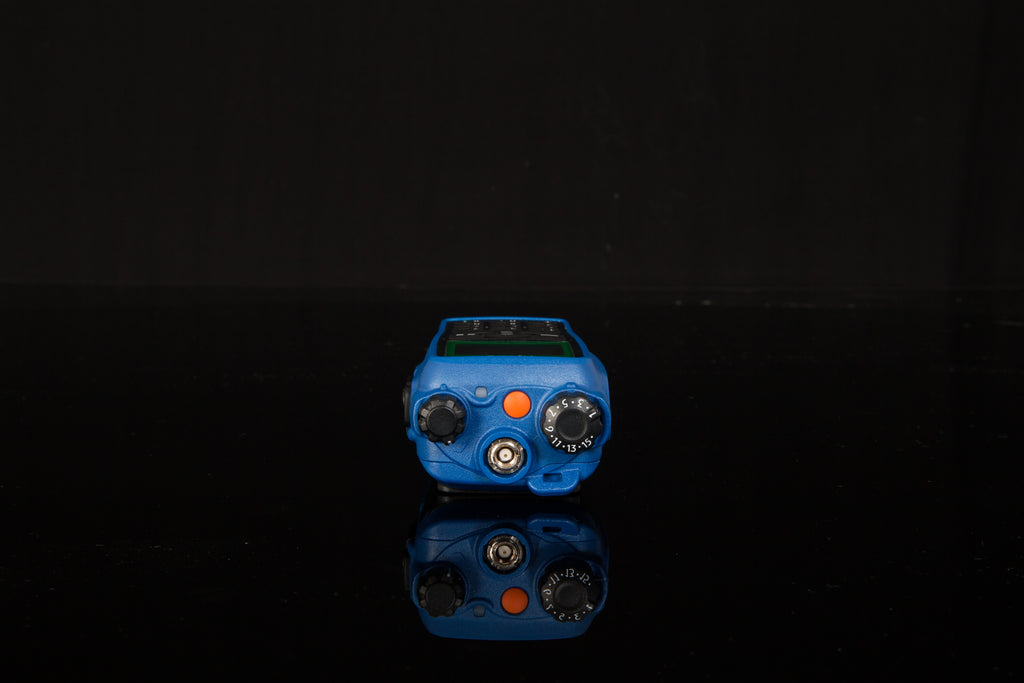

• Channel knob and volume knob separated by the antenna and made different sizes, so they can be told apart by feel with gloves on

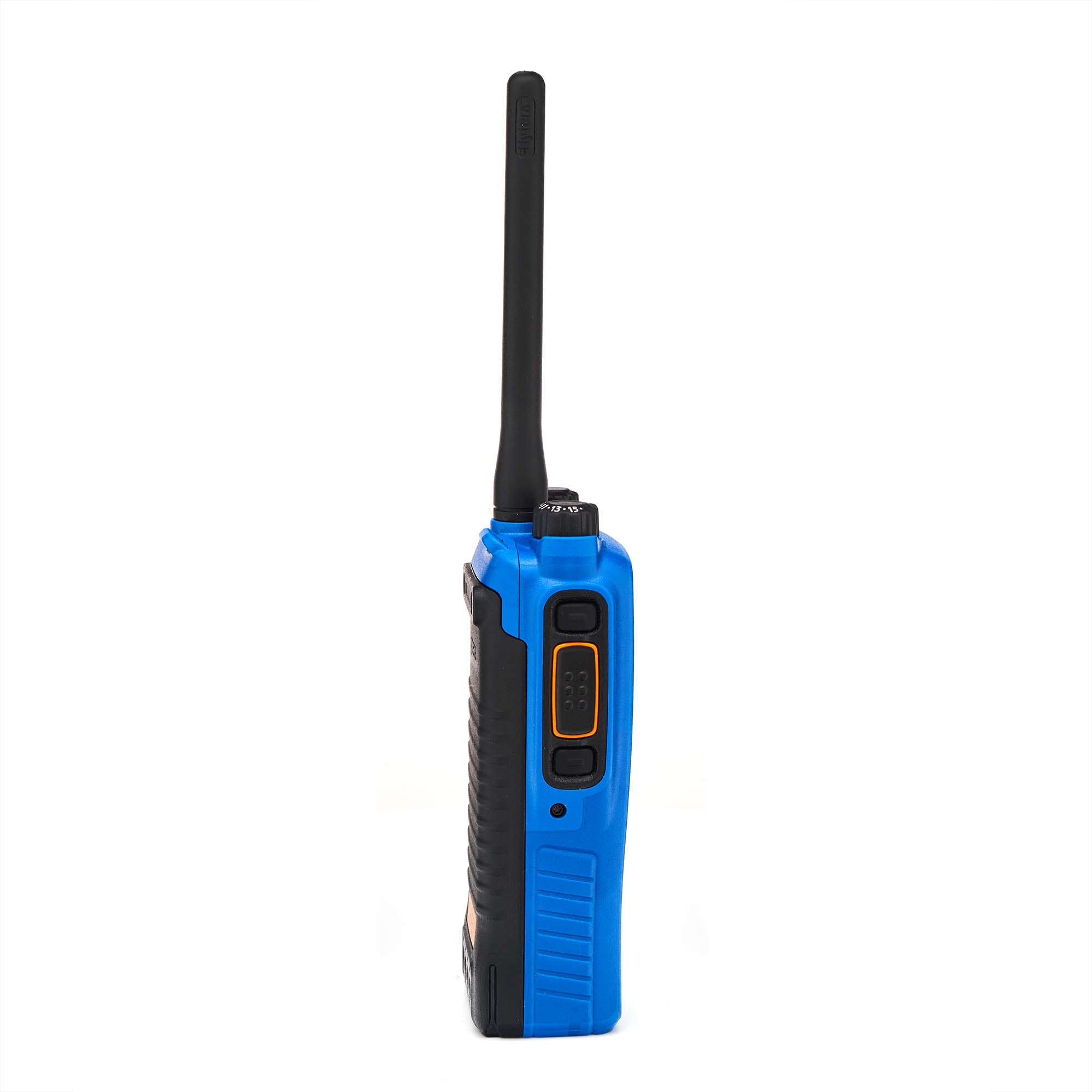

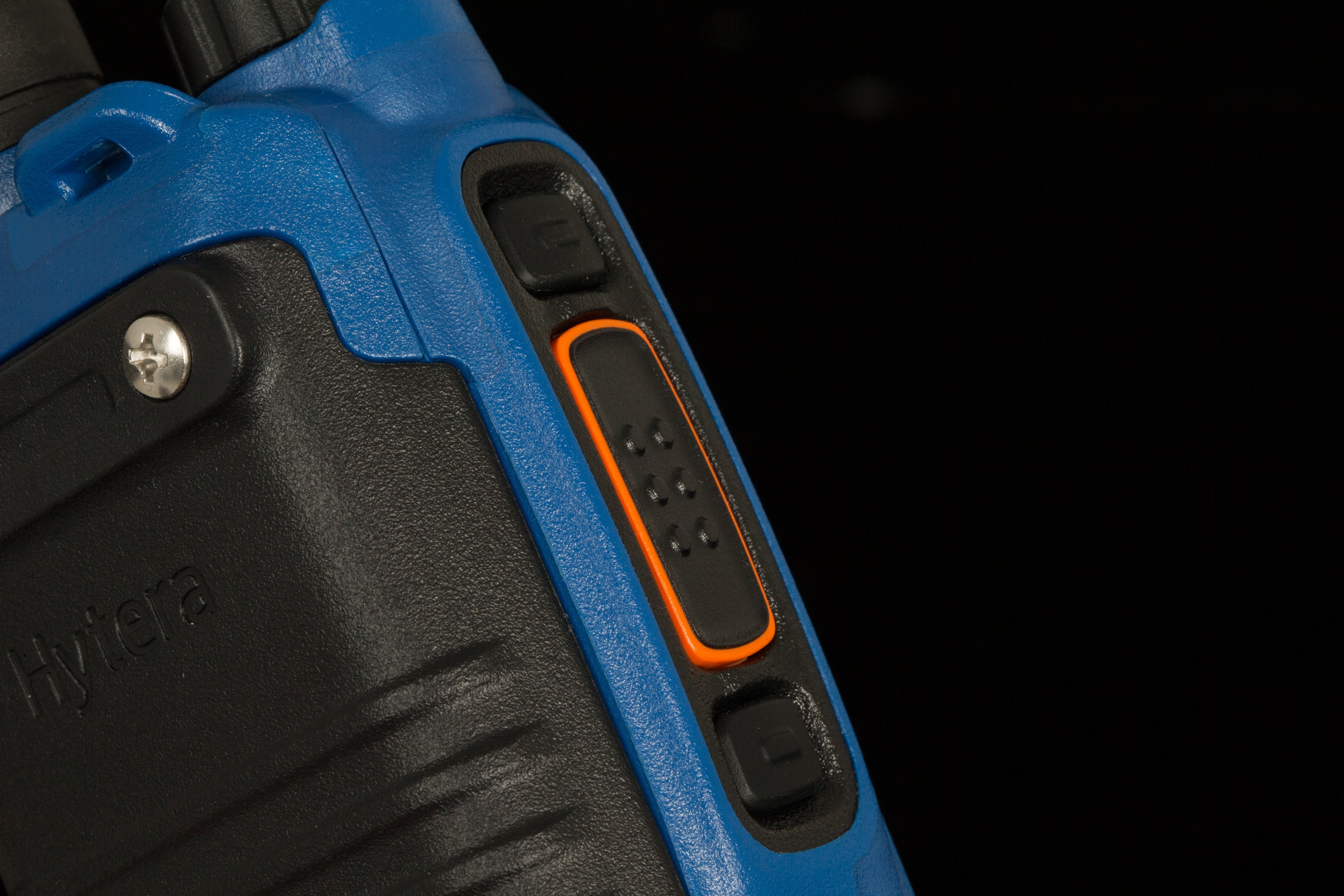

• Dedicated orange emergency key and a two-colour PTT for quick identification
• Skid-proof battery and shell sides, and a globally patented centre-mounted antenna with built-in GPS
• Text messaging: 25-character pre-programmed messages, or up to 256 characters typed on the keypad
• Triple protective circuit and optimised PCB shielding for high EMC performance

Key specifications

• Frequency range: UHF 400-470 MHz or VHF 136-174 MHz
• RF power output: 1 W rated
• Channels / zones: 1024 channels, 64 zones, up to 256 channels per zone
• Channel spacing: 12.5 / 20 / 25 kHz
• Receiver sensitivity: 0.3 µV analogue (12 dB SINAD), 0.3 µV digital (BER 5%)
• Battery: 1800 mAh Li-ion (BL1813-Ex), 7.4 V rated
• Battery life (5/5/90 duty cycle): analogue 14.5 h (13 h with GPS), digital 17 h (15 h with GPS)
• Dimensions: 141 x 55 x 39 mm with standard battery, without antenna
• Weight: 495 g with antenna and standard battery
• GNSS accuracy: horizontal accuracy under 10 m; cold start under 1 minute, hot start under 10 seconds
• Rated audio output: 0.5 W
• Vocoder: AMBE+2 or SELP
• Digital protocol: ETSI TS 102 361-1, -2, -3 (DMR Tier II)

Supplied with

1800 mAh Li-ion battery (BL1813-Ex), PS1044 power adapter, CH10A07 MCU single-unit charger, belt clip, leather strap and antenna.

Optional accessories include the SM18N4-Ex intrinsically safe remote speaker microphone (IP67), EHN12-Ex anti-explosion adjustable earbud, LCY009 carrying case, PC38 USB programming cable, MCA08 six-unit charger and CH10A06 dual-pocket MCU charger.

Supplied, programmed and supported by Yesway Communications, an authorised Hytera dealer.
